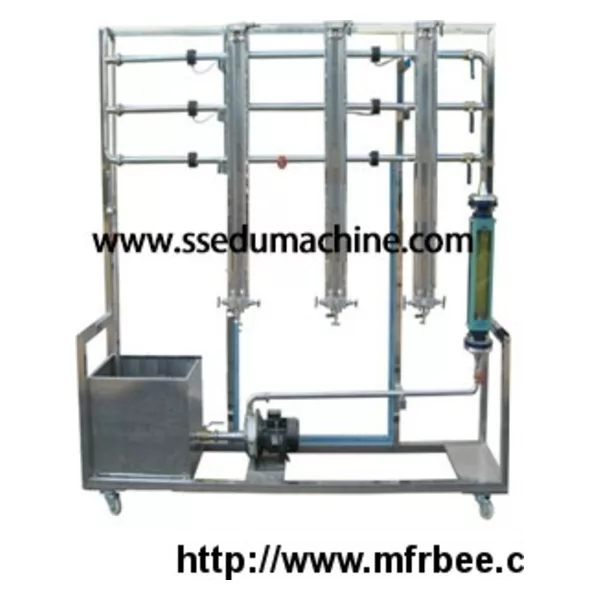

ZM2139 Measures Fluid Friction Apparatus
I.Technical parameters |
1.Rough tube section: stainless tube, tube diameter 25mm. Tube length 1.6m,internal with stainless screw ot industrial galvanized tube.
2.Smooth tube section: stainless smooth tube, tube diameter 25mm. Tube length 1.5m. 3. local resistance section: tube diameter: 25mm, test valve local resistance. 4.Water pump: fluid 5m3/h. Lift 20m. Motor power: 550W. 5. Flow meter: use rator flowmeter,( turbine flowmeter: 0.6-6 m3/h, LED LCD) 6.Storage water tank is stainless material, volume is about 40L. 7.Valve and T connector etc. Tube, material is 304stainless steel. 8.Operation panel and electric control box Structure is stainless, structure is light and beautiful, the flow is easy, operation is easy. 9.Dimension:2000×600×1800mm |
ZM2142 Pipes Fluid Friction Venturimeter Hydraulic Bench I.Technical parameters 1.Water pump: power:90W, hydraulic head :8m, rated flow:10L/min. 2. Experiment tank is made of organic glass, with stable overflow port. 3. Storage tank is made of PVC plate, the volume is about ...
