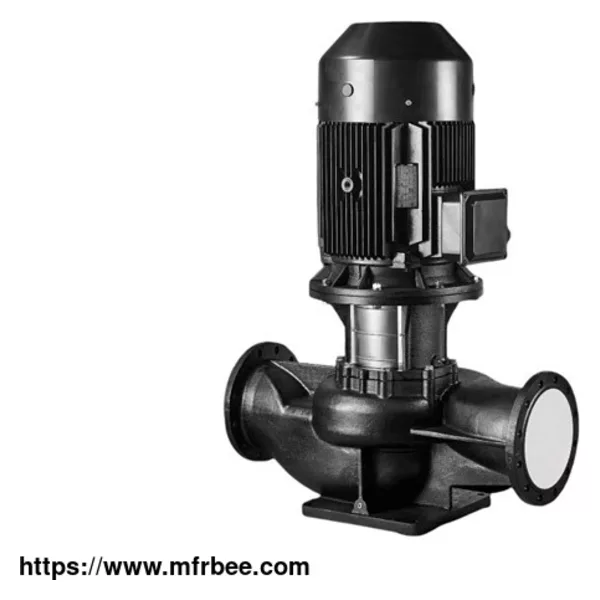

VERTICAL INLINE CENTRIFUGAL PUMPS

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

Vertical centrifugal sump pump designed in accordance with ISO2858 standard, are single-stage single-suction horizontal and vertical inline centrifugal pumps has good performance of reliable operation and high efficiency, featured by integrated simple construction for less space, easy installation, smooth operation with less noise and free of daily maintenance due to the introduction of high-quality mechanical seals and closed coupling for vertical inline centrifugal pumps.

FEATURES OF VERTICAL INLINE CENTRIFUGAL PUMPS

Integrated horizontal construction and smooth operation with closed coupling for space and cost saving;

Low noise and Leak proof operation with mechanical seals of hard alloy materials;

Vent valve designed on pump cover and water release at pump bottom, pressure detecting holes at flange inlet and outlet for online operation monitor;

Working pressure up to 1.6Mpa.

All Pumps Machinery offers a comprehensive selection of China single stage centrifugal pump with unmatched features for your specific needs.

SPECIFICATION OF VERTICAL INLINE CENTRIFUGAL PUMPS

Pump Connection Size 0.5"- 12" (15mm - 300mm)

Max. Pump Flowrate 1203m3/h (5297 GPM or 334L/S)

Max. Pump Head 133m (436 feet)

Speed Range 1450rpm to 2900rpm when 50HZ

Temperature Range -20°F / 9°C to 264°F / 120°C

Max. Working Pressure 1.6MPa

Shaft Sealing Mechanical Seal

Materials of Construction Cast Iron, Stainless Steel 304/316

As one of the most professional vertical centrifugal pump manufacturers, we provide submersible water pump for sewage, vertical pump centrifugal, supply vertical inline centrifugal fire pump, submerged vertical centrifugal pump, vertical mounted centrifugal pump, engine driven water pumps, etc. For vertical centrifugal pump price or more information, please feel free to contact us!

There are many industrial pumps suppliers, but we are one of the best choices for you.

Country: China (Mainland)
Business Type: Manufacturer
Market:Africa
Founded Year:
Address:JINSHAN INDUSTRIAL ZONE, SHANGHAI 201507, CHINA
Contact:allpumpscn .com
