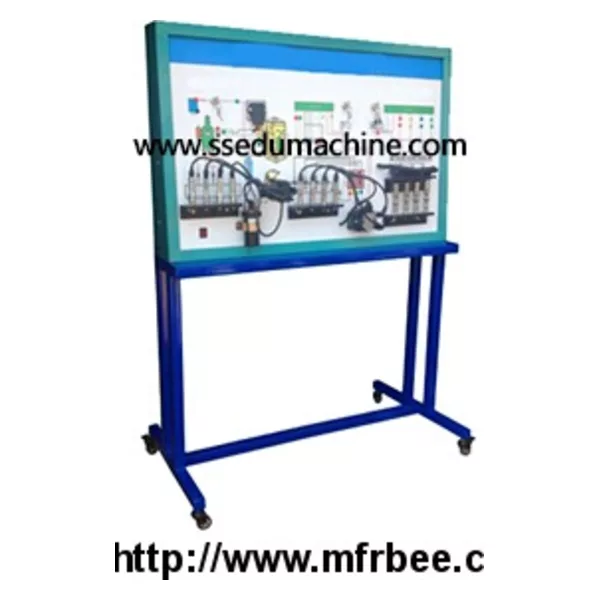

Conventional Ignition System Training Stand Automobile Trainer

Ignition mode contactor ,hall ,photoelectric ,magnetic inductive ,unitary, stand alone type

Working voltage 220V/380V matched leakage protector

Frequency :50/60HZ power :350W

Demonstrator size1000×750×180（L×W×T）

Cabinet standard1000×500×700（L×W×H）standard configuration table

overall bench adapt international standard square tube , angle iron seamless welding, after the surface polishing grinding ,then the surface is dealt with high temperature spraying plastics , it can anti-corrosion and anti-aging , hardly lose it’s color, at the bottom of the bench is equipped with universal self-locking castor for mobile teaching .

Control board adapt the pure aluminum-plastic panel, On the control panel with perceptual intuition SRS system chematic diagram, and the color is consistent with the original car control system ,and it is equipped with operation specification and experiment guidbook ,etc .

Product content :engine control unit ,ignition coil ,engine speed sensor ,hall sensor ,ignition plug and high-tension cable ignition switch ,test terminal ,intelligent fault box assembly ,mobile bench or cabinet, operation specification and experiment guidbook ,etc .

According to the obvious computer detect terminal ,cooperate with the multimeter to detect the voltage and resistance value of actuator .

Setting up the common fault of transmission ,according to the fault display ,student can analyze the fault ,detect diagnostic training ,cultivate the student’s though ability for fault analysis and detect diagnostic ,
