Versatile EFI Engines Dynamometer Test System
Product Quick Detail
- Place Of Origin
- China
- Weight
- 350kg
- Power
- 380V/50Hz
- Packaging
- Wooden Pallet
- Delivery
- 50 Days
Specifications

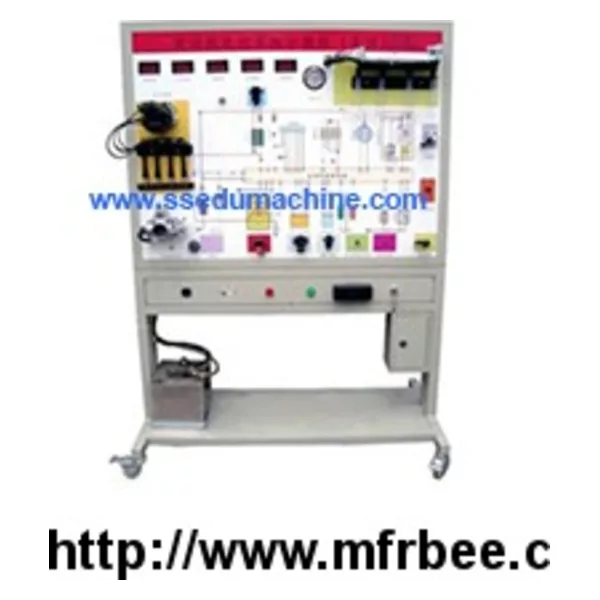

ZA3113 Versatile EFI Engines Dynamometer Test System Automobile Training System
| I. Overview |
| This product use100% brand new real engine electric control system, display vehicle engine electric control part structure and principles, on demonstrational board, it draws full automobile engine electric control diagram, circuit wire, it equip with 4mm safety electrical cable, with test pins, students can measure voltage, resistor, frequency of vehicle, it is easy to operate, safety and reliable. |
| II.Main usage |
|
1．It is suitable for universities and colleges, training institute, for teaching and training need of automobile engine theory and hand on maintenance ability.
2．It is suitable for vocational assessment center, to evaluate engineer’s ability on automobile engine electric control part. 3．It is suitable for the range of learn vehicle engine electric control circuit, automobile engine structure, function demonstration, fault find and simulator, fault test and remove, maintenance etc. |
| III.Structure and components |
| Toyota 8A engine electric control unit, DISTRIBUTOR ASSY, engine various sensors, transducers, engine various actuator, Ignition and injection components, test terminal, fault setting system, large volume storage battery or 12V switch power supply, large scale color UV paint electric circuit principle diagram, control panel, movable workbench with universal wheels and lockers, English user manual etc. |
| IV.Features |
|
1. Car automobile engine electronic control system, display vehicle engine electric circuit control system structure and principle.
2. Operation bar Ignition switch and switch, it can demonstration vehicle engine electric circuit control system work process. 3. Fault simulation system simulate real work condition, set various real vehicle fault (normal 1 to 36 fault test points), fault point quantities and content can be adjust. 4.There are test leads installed in panel, you can test system circuit components signal, such as resistor, voltage, current, frequency, waveform etc. 5. With diagnose sockets, you can read fault code and data flow. 6. Panel is with UV paint circuit diagram, the same as real car. 4mm aluminum and plastic panel, students can learn real object. 7. Desktop is with 30cm space, it is easy to put test and measurement meters, you can write training report on desk.
|
| V.Specification |
|
Dimension:1240×650×1700mm(L×W×H)
Equip color: Matt grey(customer can select their wanted color) 1.Work power: DC 12V 2.Work environment:-40degree～+50degree 3. AC power supply: AC 220V,50Hz, single phase, three wires |
| We can make customer order according to your requirements. |
