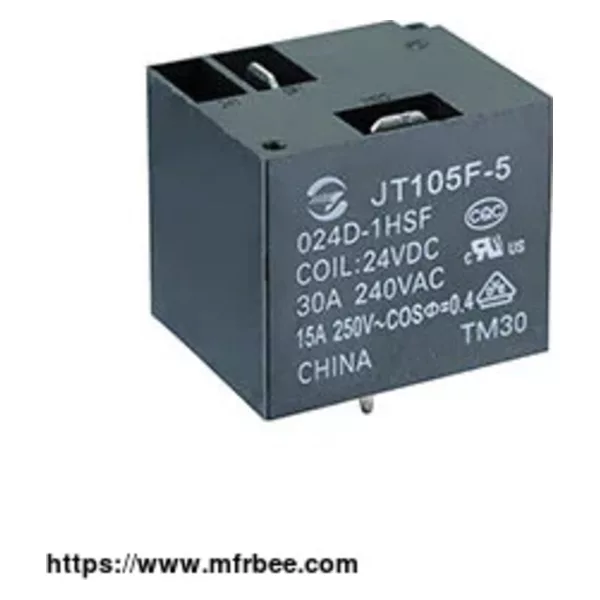

Miniature High Power Relay JT105F-5

FOB Price: USD $50.00 / Piece
Place Of Origin: china

Minimum Order: 10000

Packaging: N/A

Delivery: 12 weeks

Insulation resistance Dielectric strength Operate time(at nomi. volt.) Release time(at nomi. volt.) Ambient temperature Shock resistance Vibration resistance Humidity Termination Unit weight Construction

Between coil & contacts Between open contacts Functional Destructive

1000M Ω (at 500VDC) 2500VAC 1min 1500VAC 1min DC type: 15ms max. DC type:10ms max. DC: -55℃ to 85℃

AC: -55℃ to 60℃ 98m/s² 980m/s² 10Hz to 55Hz 1.5mm DA 5% to 85% RH PCB&QC Approx. 36g Plastic sealed, Dust protected

40A switching capability

Heavy load up to 7200VA

PCB coil terminals, ideal for heavy duty load

Plastic sealed and dust ptotected types available

4kV directric strength(between coil and contacts)

UL insulation system: Class F

Environmental friendly product (RoHS compliant)

Outline Dimensions: (32.4 x 27.3 x 27.8)mm.

Miniature High Power Relay JT105F-5 Advantages

The JT105F-5 4 way relay has a high power switching capacity of up to 10A at 250V AC or 30V DC, making it ideal for switching high power loads.

The JT105F-5 relay has a miniature size, which makes it ideal for applications where space is limited. Its small size also makes it easy to integrate into existing systems.

The JT105F-5 relay in china has low power consumption, which makes it ideal for use in battery-powered applications. Its low power consumption also helps reduce energy costs.

The JT105F-5 relay has a long electrical life of up to 100,000 operations, which ensures high reliability and durability.
