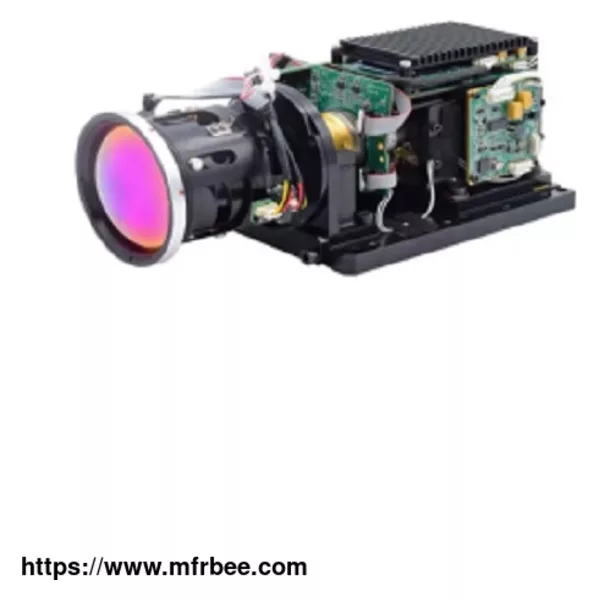

MWIR Camera Module EverCoreM640C

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

The module uses a top-notch medium-wave cooling detector that is stable, long-lasting, provides crisp images, and can withstand operation in a variety of hostile conditions. The MWIR digital thermal camera core module is appropriate for the secondary development and integration of an ultra-long-range thermal imaging system.

Specifications of MWIR Night Vision and Thermal Camera Module EverCoreM640C

Model EverCore640M

Cooling Stirling refrigerator

Detector Performance

Material HgCdTe

Resolution 640×512

Pixel Pitch 15μm

Response Spectrum 3~5μm

F.no 4

NETD ≤20mK

Lens

Focal Length 15mm~330mm continuous zoom(typical)

FOV 35°×28°~1.7°×1.4°

F/# 4

Optional Lens 60/240mm 2-field, 21mm~420mm continuous zoom, 30mm~500mm continuous zoom, 30mm~660mm continuous zoom and others,3-field, 2-field optional

Image Performance

Correction manual correction, background correction

Image Enhancement auto image filtering, digital detail enhancement

Image Flip vertical flip, horizontal flip

Frame Rate Max 100Hz

Zoom-out 2X, 4X

Polarity black hot/white hot

Cross yes

Interface

Control RS232/RS422

Analog Video Output PAL

Digital Video Output LVDS/CameraLink

Power System

Voltage 20V~28VDC (power protection)

Power Consumption <12W@25℃ standard working state

<24W@25℃power on peak

Cooling Time ≤6min(under normal temperature)

Environmental

Working Temperature -40℃~+60℃

Storage Temperature -40℃~+70℃

Humidity 5%~95%, (non-condensing)

Shock half-sine, 30g, 11ms ,3 times/axis

Vibration 3-axis,30min/axis,2.1g rms,10-500Hz

General

Dimension 143.5mm×94mm×87.5mm

Weight ≤880g

Features of MWIR Camera Module EverCoreM640C

Chilled MTC detector.

There are options for continuous optical zoom, triple/dual FOV lenses, and lens-less module configurations.

Effective hardware and software integration for picture processing.

Compatible with energized power and video interfaces, and simple to incorporate.

A frame for heat dissipation and a small, compact ir camera sensor module design provides stable operation.

As a thermal camera manufacturers, we can provide sorts of military thermal imaging camera for sale, if you are interested, please leave us a message.
