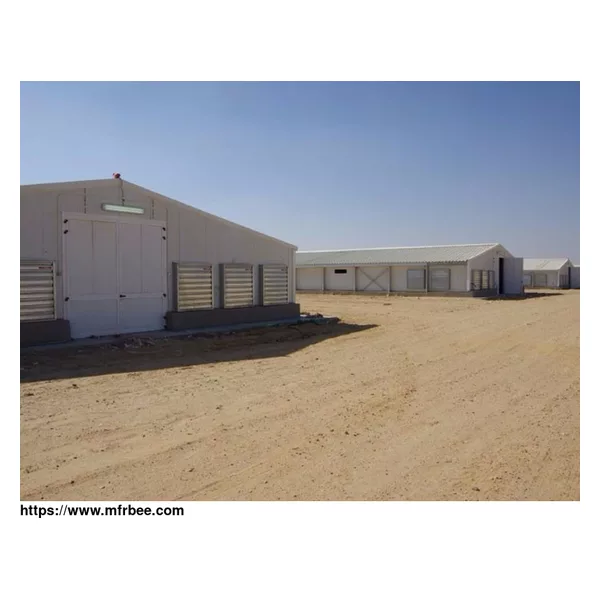

As a classification of mobile housing products, The Agricultural prefab house has been widely used in livestock and poultry sheds, barns, grain, animal feed and other agricultural materials
storage. Due to the product mainly steel square tube and C section steel purlin as the skeleton of the product so there are certain limitations in the span and height of the single. But it also has
the following advantages:
In factory design and production, the main structure is connected by bolts, standardized production, accurate component size, a small error.
Mechanized processing, component standards with interchangeability.
The material quality is light, easy to assemble and disassemble.
The manufacturing and installation cycle is short, and the number of rooms can be reduced or increased without changing any original materials during the turnover according to the needs of
customers in the process of disassembly, which is convenient for transportation.
Beautiful and durable, the product life of more than 15 years, according to the cycle of maintenance and replacement, can extend the product life of more than 10 years. One-time investment, high
reuse value, low comprehensive use cost.
Product Parameters of Prefab Agricultural Buildings
Prefab T Type Prefab Farm Buildings Cow shed Prefabricated Barn Horse Stable Technical Specification
No.+A2:D29 Sort Name Specification
1 Product Type Degree of Standardization custom-made product, design and manufacture according to clients requirement
2 Size Length (m): No limited, increase expansion joint when length more than 200m.
3 Width(m): single span should be less than 12m, an arbitrary width could make by union spans
4 Heigth(m): single floor≤5m, two or three floors, average height ≤4m
5 Roof slope: slope is 1:10~1:5
6 Standard equipment Ground channel Galvanized steel panle compression, thickness is 0.8mm
7 Post Inside post is steel square pipe, material is Q235, components surface make antirust process, and decorate with color steel compression parts.
8 Roof beam roof truss consist of thin sharpe steel by welding, component surface make antirust process
9 Purlin C or Z section steel, size from C120~C320, Z100~Z200
10 Wall beam wall beam is Ctype steel or square pipe, material is Q235,component surface make antirust process
11 Floor made of floor master beam, secondary beam and floor surface plate(plywood)
12 Wall & roof panel EPS, rock cotton, fiber glass, PU Sandwich panels/ or steel sheet
13 door Sliding door or rolling door
14 window PVC sliding window, with steel screen.
15 Electrical accessories Supply plan, design and construction according to relevant national norms(220V,50Hz, with lamp, switches and multi-function sockets.)
16 Water plumbing accessories Supply plan, design and construction according to relevant national norms
17 Bracing Steel angle, steel pipe, steel round.
18 Gutter Steel sheet or galvanized steel sheet
19 Rainspout PVC pipe
20 Accessories Anchor bolt, high strengthen bolt, normal bolt, skylight panel, ventilators, etc.
21 Design technical data Roof dead load 0.3KN/sqm
22 Roof live load 0.5KN/sqm
23 Floor dead load 0.5KN/sqm
24 Floor live load 2KN/sqm
25 Wind load 12degree,120km/h(strengthen the steel frame when the wind is bigger than this data)
26 Earthquake resistant intensity 8 degree
27 Used for temperature Celsius: from -25 to+50 (change the design when the temperature is lower than Celsius -25)
28 Installation Installation tools electric drill, electric hammer, spanner, screwdriver, pulling rivet etc, house installation need electric power.
29 Installation efficiency Four skilled labor one day can erect 40m2's house body
30 Transport container each 40ft container could load 130~150Sqm house body material
Advantages of Prefabricated Farm Shed
Factory design and production, the main structure is connected by bolts, standardized production, accurate component size, small error
Mechanized processing, component standards with interchangeability
The material quality is light, easy to assemble and disassemble.
The manufacturing and installation cycle is short, and the number of rooms can be reduced or increased without changing any original materials during the turnover according to the needs of
customers in the process of disassembly, which is convenient for transportation
Beautiful and durable, the product life of more than 15 years, according to the cycle of maintenance and replacement, can extend the product life of more than 10 years. One-time investment, high
reuse value, low comprehensive use cost
Zhongtai House is a professional prefabricated steel frame modular structure manufacturer, the flat pack container building is our main product, and we can provide a daily production capacity of
200 sets, fully meeting your high-end, middle, and low-end product needs. Our house type includes container house (Flat pack container, Detachable container, Folding container), Prefab house, H
beam Steel structure, and cold-formed light steel structure villa. With the modern facility located in the Handan plant, Zhongtai has the capability to manufacture 6,000 Units of container houses
and 70000 sqm （ building area ）prefab houses per month.
