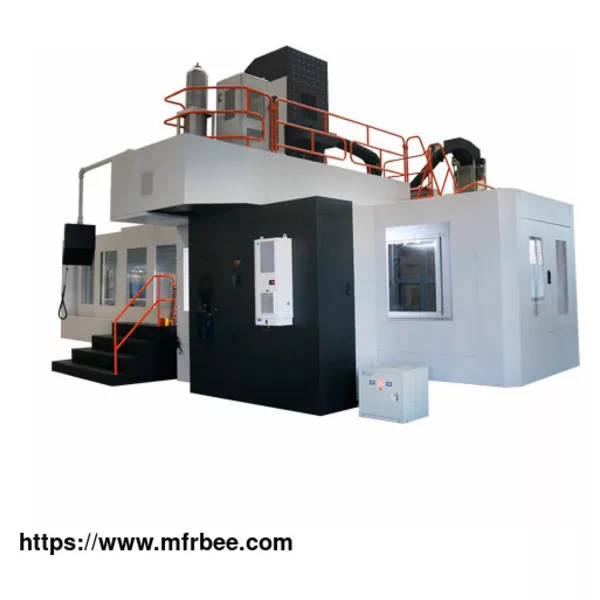

GMC-SERIES GANTRY MACHINING CENTER
Product Quick Detail
- FOB Price
- USD $30,000.00 / Piece
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 1-3 months
Specifications
GMC series gantry mill for sale is the latest precision gantry boring and milling machining center jointly developed by Germany and DEED. The machine tool of gantry type cnc machining center can
complete milling, boring, drilling, rigid tapping, and three-axis linkage surface processing, and can add right angle milling head according to customer requirements to realize five side processing
at one time, which can effectively improve processing accuracy and processing efficiency. Contact our cnc machining center factory for more information!
GMC-SERIES CNC GANTRY MILLING MACHINE SPECIFICATION
CNC gantry milling machine CNC gantry milling machine
CNC gantry milling machine model GMC2016L GMC2516L GMC3016L GMC3516L GMC4016L
Door width mm 1600 1600 1600 1600 1600
X-axis mm 2000 2500 3000 3500 4000
Y-axis Travel mm 1600 1600 1600 1600 1600
Z-axis mm 850 850 850 850 850
From spindle nose to worktable face mm 200-1050 200-1050 200-1050 200-1050 200-1050
Table width mm 1250 1250 1250 1250 1250
T-slot mm 22 22 22 22 22
bearing t 5 6 8 9 10
Spindle type r/min 8000 8000 8000 8000 8000
Spindle form BT50 BT50 BT50 BT50 BT50
Main motor power Kw 22/26 22/26 22/26 22/26 22/26
Spindle Torque N.m 560/660 560/660 560/660 560/660 560/660
Spindle box section mm 400 400 400 400 400
Spindle taper hole specification BT50（HSK63 BT50（HSK63 BT50（HSK63 BT50（HSK63 BT50（HSK63
X-axis Rapid Traverse m/min 16 16 16 16 16
Y-axis Rapid Traverse m/min 16 16 16 16 16
Z-axis Rapid Traverse m/min 16 16 16 16 16
Cutting Speed m/min 12 12 12 12 12
Positioning Accuracy mm 0.014 0.016 0.018 0.02 0.021
X (half-closed loop)
Positioning Accuracy mm 0.014 0.014 0.014 0.014 0.014
Y（half-closed loop)
Positioning Accuracy mm 0.011 0.011 0.011 0.011 0.011
Z（half-closed loop)
Repeatability Accuracy mm 0.009 0.011 0.011 0.013 0.014
X（half-closed loop)
Repeatability Accuracy mm 0.009 0.009 0.009 0.009 0.009
Y（half-closed loop)
Repeatability Accuracy mm 0.006 0.006 0.006 0.006 0.006
Z（half-closed loop)
Power capacity Kva 60 60 60 60 60
Air source pressure Mpa 0.65 0.65 0.65 0.65 0.65
Machine size mm 5100 5100 5100 5100 5100
height
Floor area (about) mm×mm 7520×4955 7850×4955 9000×4955 10250×4955 11250×4955
Machine weight T 24 26 27.5 29.5 35
controller FANUC/SIEMENS FANUC/SIEMENS FANUC/SIEMENS FANUC/SIEMENS FANUC/SIEMENS
Inquiry GMC16 gantry mill for sale at competitive bulk prices.
CNC GANTRY MILLING MACHINE FEATURES
Large work area: A CNC gantry milling machine typically has a large work area that can accommodate large workpieces.
High precision: The machine is designed to provide high precision and accuracy in machining operations.
High rigidity: The machine frame is made of high-quality materials to provide high rigidity and stability during machining.
Versatility: The machine can be used for a variety of machining operations, including milling, drilling, and cutting.
Automated operation: The machine is equipped with a computer control system that allows for automated operation, increasing efficiency and reducing operator errors.
Multiple spindle options: Many CNC gantry milling machines come with multiple spindle options, including vertical, horizontal, and multi-axis spindles.
Customizable: The machine can be customized to meet specific machining requirements, such as adding additional axes or tool changers.
Power and speed: The machine is equipped with powerful motors that provide high speed and torque for machining hard materials.
Robust construction: CNC gantry milling machines are built to withstand heavy-duty machining operations, with sturdy construction that ensures longevity.
Easy maintenance: The machine is designed for easy maintenance and can be easily serviced by technicians.
CNC GANTRY MILLING MACHINE APPLICATION
CNC gantry milling machines are used in a variety of industries for a wide range of applications. Here are some examples:
Aerospace: CNC gantry milling machines are used to machine large, complex aerospace components such as wing spars, engine mounts, and fuselage frames.
Automotive: The machine is used to machine large automotive components, such as cylinder heads, engine blocks, and transmission cases.
Defense: Defense contractors use CNC gantry milling machines to produce components for military vehicles, aircraft, and weapons systems.
Energy: CNC gantry milling machines are used in the energy sector to manufacturing components for turbines, generators, and other equipment.
Medical: The machine is used to produce medical implants, orthopedic devices, and other medical equipment.
Mold and toolmaking: CNC gantry milling machines are used to manufacture molds and tooling for various industries, including automotive, aerospace, and consumer products.
Prototyping: The machine is used to create prototypes of new products and designs quickly and accurately.
Robotics: As one kind of cnc industrial machine, CNC gantry milling machines are used to produce components for industrial robots, such as gears, drive shafts, and other precision parts.
Shipbuilding: The machine is used to manufacture large ship components such as propellers, rudders, and ship frames.
Architecture: The machine is used to create complex architectural designs, including sculptures and large-scale public artwork.
