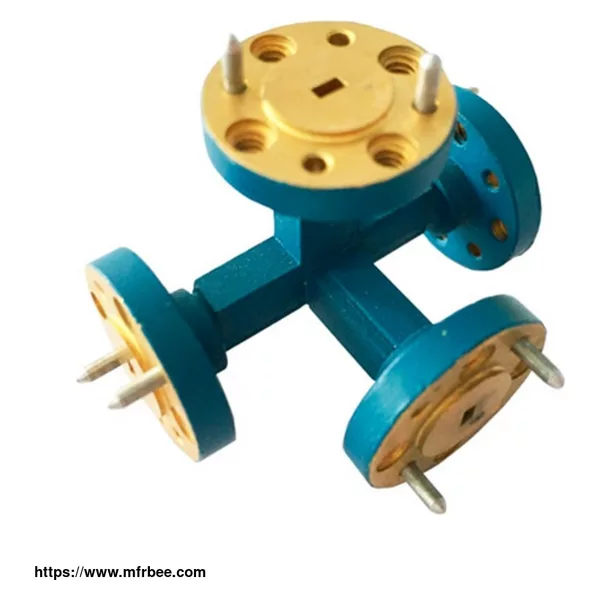

Waveguide Tees

Minimum Order: 1

Packaging: N/A

Delivery: 3-4 weeks

Dolph Microwave's magic plane tee is four-port coupler for matching, balance, and isolation. E-plane to H-plane Isolation is a function of the symmetry which is carefully balanced on each unit. If the E-plane port 4 or the H-plane port 2 are used as inputs the split is on the output collinear ports 1 and 3. When the input is E plane port4 the outputs are out of phase 180 deg. When the input is H plane port 2 the outputs are in phase. The in-phase and equal amplitude signals inputting into two collinear ports can result combined signals at H-plane port and canclle dsignal at E-plane port. This feature is widely used in monopulse antenna feeds structure and phasing testing setup. Taking Magic as example.

FAQs of Waveguide Tees

Types of Waveguide Tees

magic tee in microwave is divided in H-tee and E-tee. E-tee is only like a power divider while H-tee is almost the similar function like 2-way divider from the application. Magic tee is different from neither H-tee and E-tee, which is also functional as divider but it is 4-port components.

Application of Waveguide Tees

Wave guide tees is used to either divide or combine power in a waveguide system which is similar like a power divider. It is a 3-port components and when three waveguides tubes are connected which is like "T". So the components naming as waveguide tee.

As a professional waveguide company, Dolph microwave has high-quality waveguide parts. Welcome to contact us if needed.
