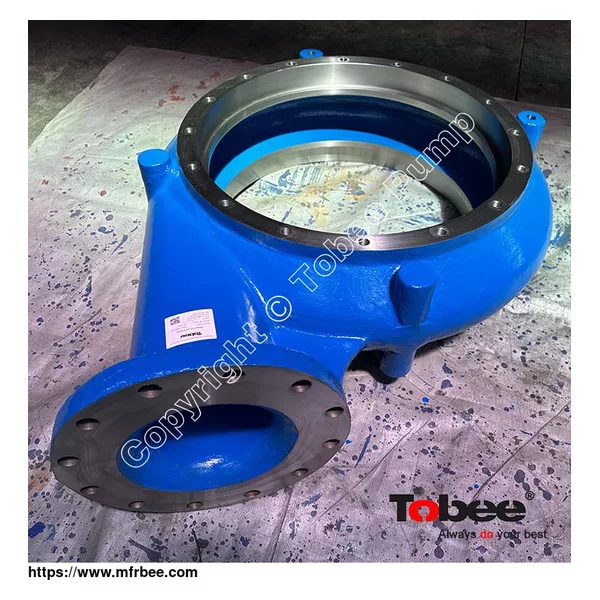

Sandman™ 12x10x23 Mission Magnum XP Frac Pump Housing 662001001
Mission Magnum XP pumps 12x10x23
12x10x23 XP Pump Design Features:
• Full-open wide impeller.
• Long life no adjustment mechanical seal available for near zero leakage.
• Thick, concentric casing with replaceable casing wear pad.
• Hard iron and high chrome alloy material optional.
• Large power to ensure large flow rates and head pressure up to 500ft.
• Small footprint design is versatile for mobile and stationary application.
• Working for fracking industrial standard and blending application.
• Each casing is approved pressure test prior to delivery.
• Heat treatment was done to improve the hardness and wear-resistance to ensure a longer working life.
• Mechanical seals can be Tungsten-Tungsten, Tungsten-Silicone, or Silicone-Carbide, all with highly polish sealing face and piton bellow and stainless steel springs.
• 100% compatible with NOV™ Mission™ Magnum™ XP, MCM™ XL series and current market offerings.
Mission Magnum XP Centrifugal Pumps
• Sand Slurry
• Supply boat mud transfer
• Slag
• Fly ash
• Bottom ash
• Dredge tailings
• Food processing
• Blending
• Paper pulp processing
• Waste slurries
• Sewage
• Fluid supercharging
• Spent liquor
• Nickel shot
• Copper, bauxite, and quary slurries
• Lead and zinc ore and tailings
