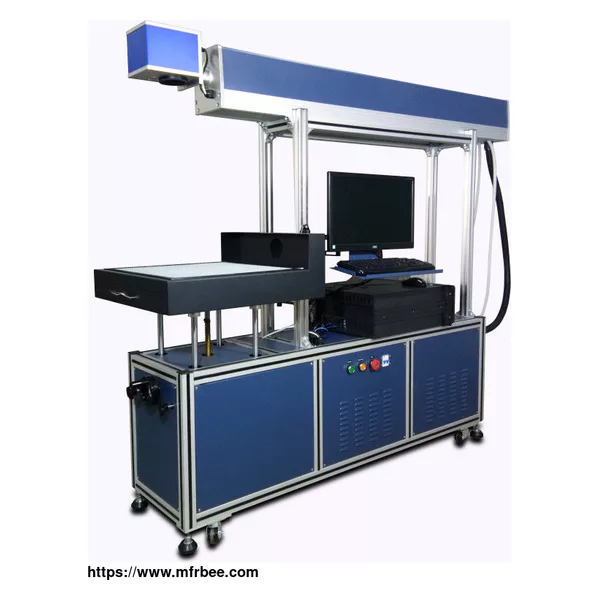

3D Dynamic CO2 Laser Marking Machine
Product Quick Detail
- FOB Price
- USD $8,000.00 / Piece
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
产品描述
3D动态CO2激光打标机由计算机控制，可以通过10.64um激光束的光束扩展，聚焦，振镜的偏转在加工材料沿所需轨道的表面进行标记，以达到雕刻效果。CO2激光打标机可以雕刻在所有非金属材料上，如牛仔裤，塑料，木材，亚克力，纸张。具有以下字符：
1.L级打标区域，速度快，精度高，稳定性好;全封闭光路;稳定性高;系统齐全，适用于大批量、多品种的连续加工。
2.线宽可达0.4mm以下，激光场平均值为0.6mm。
3.本机将根据客户要求采用CO2眼镜管或金属射频管，
4.CO2非金属激光打标机价格便宜，可以帮助买家尽快赢得市场。
5.该机速度快（0-8000mm/s），采用著名的中/扫描振镜头。
6.最大打标面积可达：400 * 400mm/ 600 * 600mm/ 800 * 800mm。
技术参数
| 型 | TXT-DB-CM100/150/180/280 |
| 激光类型 | CO2 激光器 |
| 激光功率 | 100W/150W/180W/280W |
| 激光波长 | 1064纳米 |
| 标记区域 | 400毫米/400毫米/600*600毫米/800*800 |
| 打标深度 | ≤1.2毫米 |
| 打标速度 | 8000毫米/秒 |
| 最小线宽 | 0.012毫米 |
| 最小字符数 | 0.15毫米 |
| 重复精度 | ±0.003毫米 |
| 光束质量 | M2 <1.5 |
| 焦点直径 | <0.01毫米 |
| 激光输出功率 | 10%~100%连续调整 |
| 系统运行环境 | 视窗 XP /7/8/10 32/64位 |
| 长*宽*高 | 2350 * 700 *1450毫米 |
| 重量 | 260公斤 |
| 冷却方式： | 水冷 |
| 功率要求 | 交流220V/110V/50赫兹 |
| 通信接口 | USB |
| 机器尺寸/后包装 | 2000 * 850 *1360毫米 |
| 自选 | 旋转装置，移动工作台定制 |
