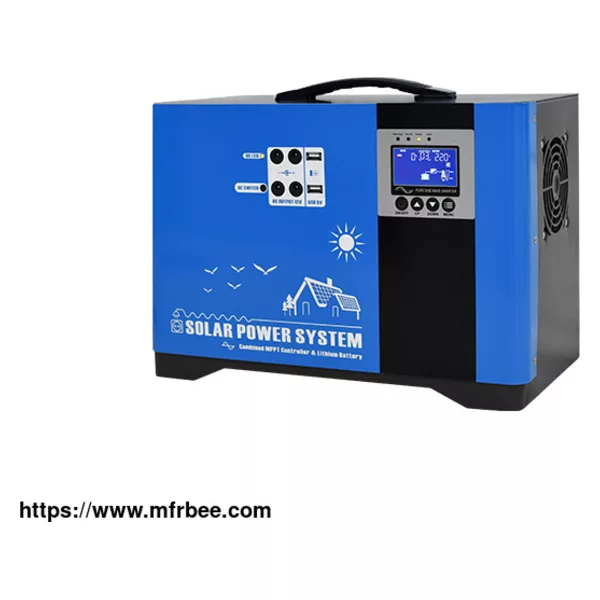

All-in-one Lithium Battery Solar Storage System

FOB Price: USD $300.00 / Piece
Place Of Origin: China

Minimum Order: 100

Packaging: carton

Delivery: 7 Days

The integrated solar lithium battery for solar system adopts lithium batteries as a built-in battery type. Lithium batteries for solar panels have the characteristics of small size, light weight, high capacity density, and service life of 5-8 years. When applied to an integrated solar energy storage system, the volume and weight of the system can be greatly reduced, thereby reducing freight costs. The most popular battery type currently on the market.

The Details of All-in-one Lithium Battery Solar Storage System

Lithium Batteries For Solar Power Storage

The integrated structure design of lithium solar batteries saves complicated installation steps and is more convenient to use.

Lithium Solar System

Built-in brand new lithium iron phosphate battery for solar system with a service life of up to 8 years.

Lithium Storage Batteries For Solar Power

Lithium Solar Batteries have Two output ports, AC and DC, can meet the simultaneous use of AC and DC appliances.

Wall Mounted Lithium Battery

Lithium Solar Batteries are Equipped with an MC4 solar interface, solar panels can be directly connected without other conversion heads.

The Specification of All-in-one Lithium Battery Solar Storage System

Model MPSG-N-500W MPSG-N-1000W MPSG-2000W MPSG-3000W MPSG-5000W

Battery Voltage 12V 24V 24V 24V 48V

Inverter

RATED POWER 500W 1000W 2000W 3000W 5000W

Input Voltage Range 110/220VAC±10% 140-275V

Input Frequency 45-65Hz 45-65Hz

Output Voltage 110/120/220/240VAC(optional) 220VAC

Output Frequency 50/60Hz 50/60Hz

Output Wave Pure Sine Wave Pure Sine Wave

Specification Of Built-in Lithium Battery 600WH 1200WH 2260WH 2600WH 4500WH

Communication RS485/WIFI(optional) RS232

Solar Input

Max. PV Power 240W 480W 720W 1440W 1440W

Range Of Charging Voltage 30-90VDC 30-90VDC 30-150VDC 60-150VDC 60-150VDC

Rated Charge Current 20A(MPPT) 30A(MPPT) 60A(MPPT) 30A(MPPT)

Voltage For Floating Charge 13.7VDC 25.2VDC 25.2VDC 25.2VDC 50.4VDC

DC Output

5VDC USB Output 2个/MAX 2A 2个/MAX 2A

12VDC Output Ports 2个/MAX 5A 2个/MAX 2A

PHYSICAL

Heat Dissipation/Cooling Temperature control by intelligent exhaust fan

Display Digital LCD

Electricity Charging Yes

External Size：W*D*H（mm） 410*210*300mm 410*210*385mm 538*330*481mm 545*507*580mm

Package Size：W*D*H（mm） 458*258*348mm 458*258*433mm 635*420*650mm 635*600*761mm

G.W.(Gross Weight) 16kg 25kg 70kg 80kg 83kg

The Production of All-in-one Lithium Battery Solar Storage System

The production of solar energy storage systems requires the integration of the solar controller, solar inverter and solar battery. Each system part is tested independently during the production process. After finishing the machine assembling, the entire machine will be tested with charge and discharge to ensure that the machine can operate normally after it is delivered to the customer.

Now the price of led flood lights for sale is reasonable, if you have needs, please contact us.

In China, Anern solar has been engaged in Solar and LED lighting for more than 12 years. Exploration, innovation, and development are the basic development principles of Anern. Anern has been providing the world with high-quality solar lights and solar power systems for a long time, which is the basic recognition of the whole industry.
