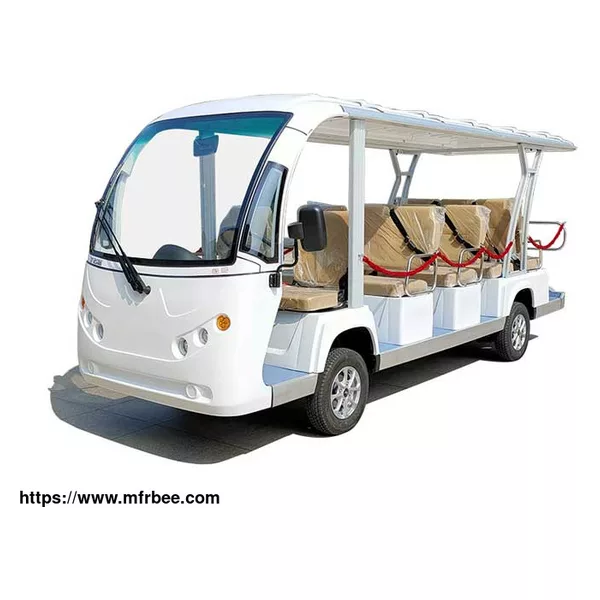

14 Seater Electric Shuttle Bus

Place Of Origin: Dezhou City. Shandong Province

Minimum Order: 1

Packaging: SKD

Delivery: 7-15 working days

A 14 seater electric bus is a small-sized, environmentally friendly vehicle that operates on electricity. It is designed to transport a limited number of passengers and is an ideal choice for small groups or short distances. These buses are powered by electric motors and rely on rechargeable batteries to store energy.

The 14 seats can accommodate up to 14 people, and a high-power electric drive system is installed. The grade ability is greater than 46%, and the 14 passenger electric shuttle can realize the start and stop of the full load gradient.

Specification of 14 Seater Electric Bus

14 Seater Electric Bus Technical Parameters

Overall Dimension 5150*1530*2100mm

Passengers Capacity 14

Max. Speed 30km/h

Max. Travelling Range 80-100km

Slope Climbing Capacity 15%

Turning Radius 6.5m

Ground Clearance 145mm

Brake Distance 5m

Wheelbase 2780mm

Front/Rear Tread 1280/1290mm

Weight 1020kg

14 Seater Rlectric Bus Electric System

Motor 4kW AC

Controller 48V, 400A

Battery Type 72V, 100Ah, 6pcs

Steering Continuously variable transmission system

Charger Intelligent high-frequency car charger

Charging Time 8 hours

14 Seater Electric Bus Motivation Control

Braking System Front disc and rear drum brake,

dual-circuit hydraulic brake, vacuum brake booster pump

Front-axle And Suspension Front axle MacPherson independent suspension

coil spring

Rear-axle And Suspension Integral rear axle leaf spring

Tire 155R12, Aluminum alloy rim

14 Seater Electric Bus Exterior

Dashboard Digital display LCD instrument

(including voltage, vehicle speed, mileage, light, front, and rear reversing signals, etc.)

Light Combined headlights, combined rear taillights

Seat High-density sponge + durable leather fabric

Body Material Steel frame + ABS engineering plastic molding material

Advantages of Using a 14 Seater Electric Bus

There are numerous benefits to using a 14 seater electric bus. Firstly, they are eco-friendly and emit no harmful pollutants, which helps to reduce air pollution. Secondly, they are quiet and produce very little noise, which makes them ideal for use in residential areas or other noise-sensitive locations. Finally, 14 seater electric buses are more cost-effective to operate compared to their diesel or petrol counterparts, as they require less maintenance and have lower fuel costs.

Charging Requirements for 14 Seater Electric Bus

Charging a 14 seater electric bus requires access to a charging station that is compatible with the vehicle's charging port. Typically, these buses are charged using level 2 charging stations, which can provide a full charge in 4-6 hours. Some models may also support fast charging, which can provide a full charge in as little as 30 minutes. It is important to ensure that the charging station is compatible with the specific model of the bus to avoid any compatibility issues.

If you want to know more about 14 seater electric bus price, please contact us.

As a reliable electric golf cart company, we can offer kinds of electric golf car for sale, if you are interested, please leave us a message.
