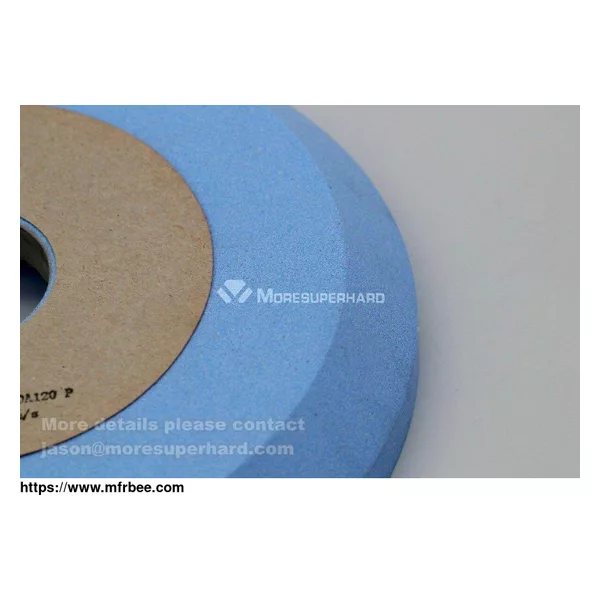

Type: | Sol Gel Grinding wheel |
Abrasive Material: | ceramic aluminum oxide |
Application: | cast iron, carbon steels, alloy steels, and tool steels, roller bearings, cylinders, compressor parts, gear parts, hydraulic and pneumatic cylinders etc. |
Specification: | Customized |
Brand Mark: | Moresuperhard |
Trade Terms: | FOB |
Packages: | Hard carton |
Delivery Time: | 15 workdays by express |
Ceramic abrasives prepared by sol-gel method is a kind of sintered abrasive, grain size is tiny, only 100- 500nm. SG abrasive is high purity, ceramic aluminum oxide abrasive with a submicron crystalline structure deprived from a seeded gel sintering process.
The parameters of Ceramic abrasives:
Main chemical composition
(Typicalvalue) |
Physical properties
(Grainsize 60) |
Theoffer ablegrain size | code |
Al2O3 (99.22%)
Na2O (0.08%) |
Density : 3.90(g/cm³)
Bulk density : 1.82(g/cm³) Crystal size : 0.15 (μm) |
24-180# | s |
* Precision grinding for unhardened and hardened steels, such as cast iron, carbon steels, alloy steels, and tool steels, etc.
* Internal grinding roller bearings, cylinders, compressor parts, gear parts, hydraulic and pneumatic cylinders etc.
* Grinding the crankshaft and camshaft of the engine and transmission of the car; worm gear grinding.
Detailed Specifications can be customized!
Provide after-sales service
Answering questions about usage
Return and exchange of products for non-human reasons
– Grinding wheel made of ceramic abrasive with has a higher durability and longer life, which is 5-10 times than the grinding wheel made of common corundum.
– Sharp grains, good cutting ability, and high grinding efficiency.
– Good self- sharp ability, microcrystalline structure Benefits.
–Very good cutting capability, sharp grains.
– High removal rate extended wheel life
MORESUPERHARD is a professional manufacturer of grinding, cutting, polishing and dressing tools. Thanks to abundant experience in surface treatment, we design and offer a complete grinding and dressing solution to our customers in various industries. With innovative and creative development conception, MORESUPERHARD is tirelessly striving to provide excellent design, superior quality and perfect service to world-wide customers. More than 1000+ customers benefit from our professional technical services.
