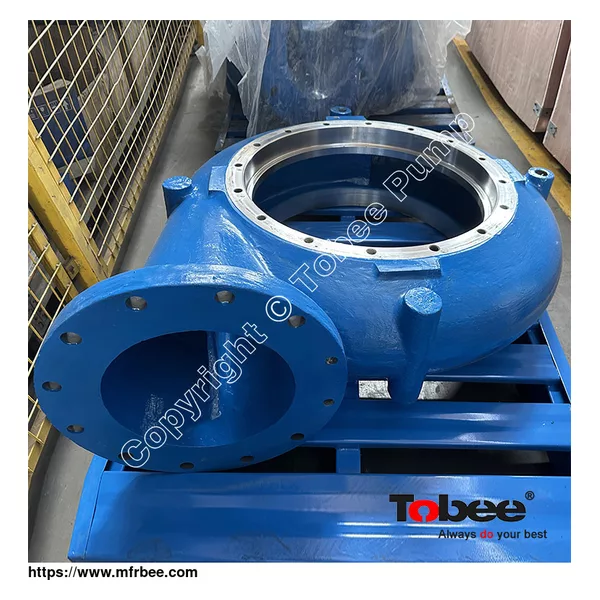

Tobee® 24022-01-30A Casing for Mission 14x12x22 XP Pump
Product Quick Detail
- Place Of Origin
- 中国
- Minimum Order
- 1
- Part Code
- 24022-01-30A
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Description
Sandman™ 24036 (Processing # 658416102) Mechanical Seal
The Magnum XP is ideal for pumping large volumes of abrasive, corrosive and difficult to pump heavy slurries. The compact overall size makes it an excellent choice for high-volume mobile and stationary applications requiring a small footprint. Designed for continuous operation with minimal maintenance, this model is designed to provide maximum seal life through low stuffing box pressure and extra heavy shaft design.
A unique casing flow divider on the 12x10x23 and 14x12x22 halves radial loads and doubles bearing life. Heavy-duty bearings are permanently lubricated to minimize maintenance.
The Magnum XP is capable of handling flow rates up to 7,500 GPM and differential pressures up to 420 feet.
Mission XP Pump
• Versatile stuffing box
• One-piece casing
• Casing gasket receded for protection
• Back vanes reduce collection of solids at stuffing box
• Long-life, no-adjustment mechanical seal available for near zero leakage
• Replaceable shaft sleeve
• Lip seals for maximum bearing protection (Labyrinth seals optional)
• Duplex angular contact bearings
• Thicker, stronger concentric casings
• Full pipe diameter entrance for minimum turbulence and maximum efficiency
• Single row roller bearings for increased bearing life
• Easily accessible front access drain
• Reduced high bearing loads
