heavy duty waterproof pvc vinyl tarp
pvc vinyl tarpaulin
pvc vinyl tarp

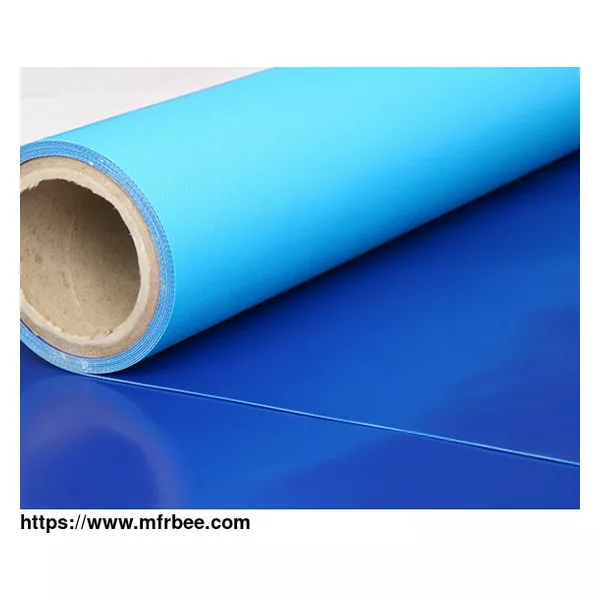

PVC vinyl tarpaulin is also called PVC tarp or vinyl tarp. 100% waterproof and airtight,PVC vinyl tarp is made of PVC double coated with polyester. It is used to make tents, truck covers, inflatable boats, tonneau covers, truck side curtains, oil booms, and so on.
PVC Vinyl Tarp Details
Item No: | Descriptions | Unit | Your Product Measurements: | |
1 | Material of the Woven Fabric DIN60001 | Polyester | ||
2 | Weave DIN ISO 9354 | Plain Weave | ||
3 | Count of Yarn | Warp: | Denier | 1000 |
Weft: | Denier | 1300 | ||
4 | Setting/ Number of Threads | Warp: | Threads/cm | 20 |
DIN EN 1049 | Weft: | Threads/cm | 18 | |
5 | Base Coat | PVC | ||
6 | Weight of the cloth DIN EN 12127 | g/m² | 185 | |
7 | Total Weight DIN EN ISO-2286-2 | g/m² | 610 | |
8 | Tensile Strength DIN 53354 | Warp: | N/5cm | 3000 |
Weft: | N/5cm | 2600 | ||
9 | Tear Resistance DIN 53363 | Warp: | N | 400 |
Weft: | N | 360 | ||
10 | Adhesion (Coating) DIN 53357 | N/5cm | 100 | |
11 | Adhesion (Welding) | Kg/5cm | 10 |
PVC Vinyl Tarpaulin Features
01
Special surface treatment
As a professional PVCtarpaulin factory, Heli can treat theheavy duty waterproof pvc vinyl tarp with acrylic or PVDF lacquereing, which will provide extra protect to the tarp.
02
Large width
Heli can make 5.1M widthpvc coated tarpaulin at maximum without seaming.
03
Fire retardant
Heli PVC vinyl tarpaulin is fire resistant, complaint to NFPA701, we can provide the certificate to our customers.
How Do You Pack The PVC Vinyl Tarp?
We pack the PVC vinyl tarp in rolls. Inside, there is a 3-inch hard tube, and outside with PE foam and craft paper packing.
