ASTM B338/ ASME SB338 TITANIUM ALLOY STEEL TUBE
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
ASTM B338/ASME SB338 Titanium Tube (Ti Tube) has a superior strength-to-weight ratio and corrosion resistance is one of the common titanium products. We generally divide ASTM B338/ASME SB 338 Titanium tubes into two types, one is called the seamless titanium tube, and the other is called the welded titanium tube.
ASTM B338/ ASME SB338 TITANIUM ALLOY STEEL TUBE PROVIDED BY YUHONG

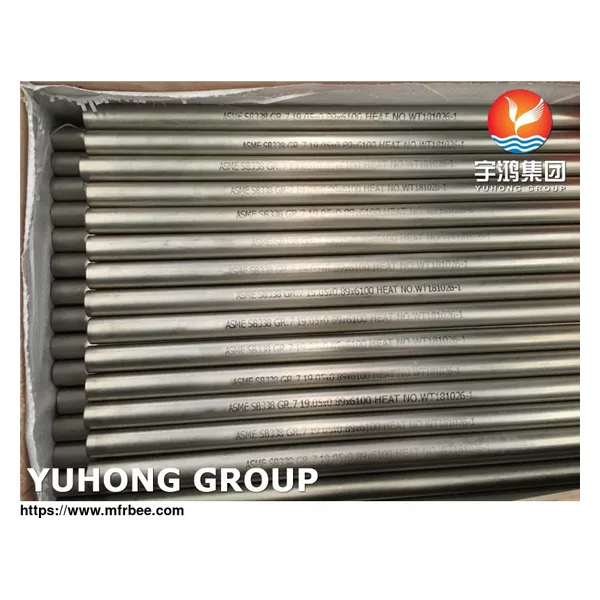

ASTM B338/ ASME SB338 TItanium Alloy Steel Tube
YUHONG GROUP provides the best ASTM B338/ ASME SB338 Titanium Alloy Steel Tube including straight tube, U tube for heat exchanger, boiler, and superheater.
GR.1 TItanium Alloy Steel Tube
GR.2 TItanium Alloy Steel Tube
ASTM B338/ ASME SB338 TITANIUM ALLOY STEEL TUBE FEATURES
ASTM B338 / ASME SB338 Titanium Tube Grade 7 UNS R52400 Alloy Steel Seamless Tube Titanium grade 7 is a corrosion-resistant alpha titanium alloy with similar mechanical properties to the commercially pure grades. There are 28 grades of titanium and titanium alloys for tubing purposes, among which Titanium Grade 2, Grade 7, and Grade 12 are most often seen in tubing applications.
ASME SB-338 is the standard specification for seamless and welded titanium and titanium alloy tubes or tubing which are intended for surface condensers, evaporators, and heat exchangers. ASME SB-338 has a small palladium addition to improving corrosion resistance, particularly in mineral acids and strong brines.
ASTM B338/ASME SB338 TITANIUM ALLOY TUBES TYPE
| ASTM B338 Specification | ASTM B338/ASME SB338 |
| ASTM B338 Copper&Copper Alloy Tube Type | Pulp and paper production, Waste treatment |
| ASTM B338 Tube Size in Outside Diameter | Seamless - 1/4\" NB to 12\" NB Welded / ERW- 1\" NB to 16\" NB |
| ASTM B338 Tubing Length | 5 to 7 Meters, 9 to 13 Meters, Single Random Length, Double Random Length And Customize Size. |
| ASTM B338 Heat Changer Tube Thickness | Schedule 10 to Schedule 160 |
ASTM B338/ASME SB338 TUBING TENSILE REQUIREMENT
| UNS No. | Tensile Strength | Yield Strengh | Elongation |
| min MPa | min MPa | min% | |
| GR.1 | σb≥240Mpa | 138Mpa≤σ0.2≤310Mpa | δ≥24% |
| GR.2 | σb≥345Mpa | 275Mpa≤σ0.2≤450Mpa | δ≥20% |
| GR.3 | σb≥450Mpa | 380Mpa≤σ0.2≤550Mpa | δ≥18% |
| GR.7 | σb≥345Mpa | 275Mpa≤σ0.2≤450Mpa | δ≥20% |
| GR.9A | σb≥620Mpa | 483Mpa≤σ0.2 | δ≥15% |
| GR.9B | σb≥860Mpa | 725Mpa≤σ0.2 | δ≥10% |
| GR.12 | σb≥483Mpa | 345Mpa≤σ0.2 | δ≥18% |
| GR.16 | σb≥345Mpa | 275Mpa≤σ0.2≤450Mpa | δ≥20% |
ASTM B338/ASME SB338 TUBING APPLICATIONS
Chlorination systems
If you want to find a reliabless pipe manufacturer, please contact us, and we will be your best partner.
