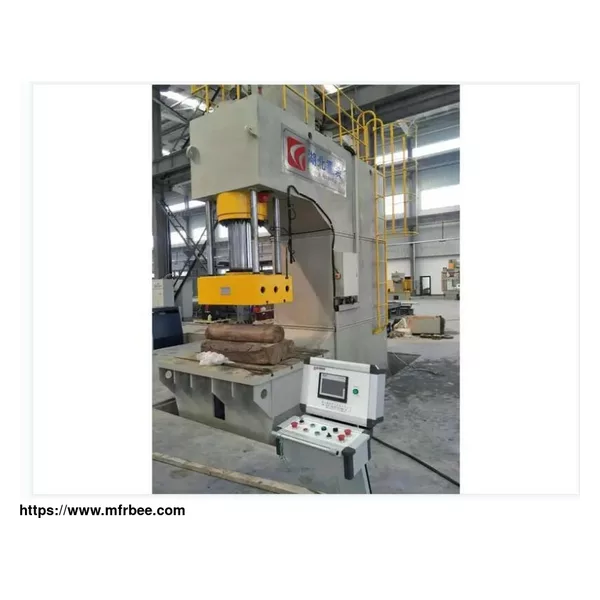

Hydraulic Press

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

As a professional hydraulic press machine manufacturer in China, EZHONG specializes in producing single-arm hydraulic press machine in china with nearly 70 years of production experience. This kind of hydraulic press machine china for sale has absorbed German and Japanese technology and is a new machine with EZHONG's independent intellectual property rights.

This hydraulic press machine china is suitable for various plastic materials pressing correction, folding, and stamping process.

The hydraulic press machine has an independent power mechanism and electrical system and adopts button centralized control, process action is controlled by PLC, which can realize two operation modes of inching and semi-automatic.

EZHONG has its own hydraulic press machine factory, so our EZHONG group has high quality hydraulic press machines for sale at reasonable prices. Welcome to contact us for cooperation.

Hydraulic Press Machine Specification

Model Max Working Pressure Effective Stroke Max Opening Height Pressing speed Motor Power

500T 25Mpa 800mm 1600mm 10-15mm/s 44KW

EZHONG Horizontal Axle Press Machine Details

Wheel press machine tool composition: Machine front fixed beam, movable beam, after the support, chassis, hydraulic system, car device, electrical system is composed of the main parts.

Safety protection of horizontal press machine:

1. When the system overvoltage, with pressure relay shutdown protection and overflow protection.

2. Install an emergency stop button at each of the fixed beam and console locations.

3. The safety system of mechanical and electrical equipment and control conforms to the national standards of China or corresponding standards, and the safety interlock system is reliable.

4. The oil is cooled by air. When the oil temperature reaches 60 °C, the horizontal hydraulic press machine will automatically alarm and stop.

Horizontal Press Machine Optional Features

1. The horizontal hydraulic press for sale has independent power mechanism and electrical system.

2. The horizontal press machine adopts button centralized control.

3. Process action is controlled by PLC.

4. The wheel press machine can realize two operation modes of inching and semi-automatic.

Notes Of EZHONG Horizontal Press Machine Operation Process

1. Check whether the horizontal hydraulic press brake is placed horizontally and the power supply is safe.

2. Check whether the hydraulic oil is in place and the circuit is not damaged.

3. Start the motor and check whether the rotation direction of the motor is correct.

4. Jog the hydraulic system to check that there is no leakage or abnormal sound in the hydraulic system.

5. Run the horizontal hydraulic press system with an empty vehicle to drain the air in the system.

6. Adjust the workbench according to the motor stator, press-fit and debug, so that the horizontal hydraulic press machine meets the press-fit requirements.

7. After the normal press-fitting work, pay attention to the maintenance of the horizontal bending press machine.

8. This bending press machine produced by our company requires a relatively high press-fitting accuracy, and the equipment is equipped with a pressure and stroke tester.

You can see the progress of the press on the screen, which is very accurate. In addition to the equipment's own program control, the requirements of the operator must be serious. To improve

For the service life of the wheel press machine, we must strictly operate the wheel press machine correctly.

The Advantages Of Hydraulic Press Machine for Sale

The hydraulic system is located inside the machine body, with beautiful appearance, simple and convenient operation, high efficiency, time saving, labor saving, and cost saving.

This series of bending press machines are equipped with independent hydraulic and electrical control systems, using buttons for centralized control, which can realize two molding processes of fixed stroke and fixed pressure, and have functions such as pressure display, stroke, and pressure adjustment.

The four-pillar guide pillar is oriented to improve the accuracy of the product, and the pillar and piston rod are plated with copper and hard chromium after quenching to ensure the wear resistance and high roughness of the surface. The oil pump inlet is equipped with a unique filter device to ensure. The service life of oil pumps and valves.

The oil connection adopts imported high-pressure hose, which greatly reduces machine noise.

The whole hydraulic press machine adopts integral steel plate welding, which is thick and beautiful, and has good stability.

The hydraulic press machine is manufactured in accordance with EC safety standards and has CE certification.
