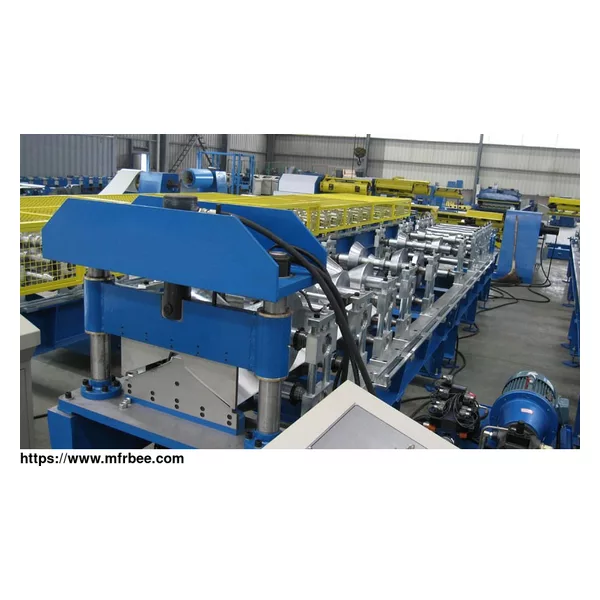

Ridge Cap Roll Forming Machine

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

The series of metal roof ridge cap machine are mainly used to make ridge capping. Ridge capping is a critical part of the structure of a roof. Ridge capping is placed along the peak of a roof to cover where the roof sheets meet. Roll-top ridge capping is a rolled product that is made to specific dimensions and cut to requested lengths. We manufacture both standard size ridge capping roll forming machines and customized roll forming machines.

Features and Advantages of Ridge Cap Machine

Capable of producing ridge capping under mass-production with different sizes and specifications.

Have the working speed choices ranging from 15m to 30m/min.

Certified with multiple patents

Prompt delivery for roof machine in stock.

Suitable Raw Material for roof ridge cap roll forming machine

Material type: Color coated Steel, Aluminum sheet

Thickness: 0.3-0.6(mm)

Yield Strength: 230-300/350 (MPa) optional

Width: 385 (mm) as profile requests

Production line Components and Parameters of Ridge Cap Roll Forming Machine

1. Decoiler 2t/3t/5t Motor/hydraulic motor/passive (optional)

2. Filming covering device optional

3. Front shear optional

4. Lubricating device no need

5. Roll forming system 15/20/30 m/min

6. Safety cover optional

7. Post cutting Motor/hydraulic (optional)

8. Output System Manual supporter/ Automatic Stacker (optional)

Stackmaster (Output direction) Lateral/Longitudinal (optional)

9. Hydraulic system Power supply for decoiler /post-cutting system

10. Electric control syste MITSUBISH/ SIEMENSE/AMS (optional or as requested )

Working Flow of Ridge Capping Roll Forming Machine

The general working flow of the metal ridge cap roof machine / ridge cap roof machines is as follows: Coil Charging Car (optional) - Decoiler (passive/auto) - Front Shear(optional) - Feeding and Guiding Table - Filming Covering (optional) - Roll Forming System - Step Punching unit(as profile requests) - Post-Cutting to length (Hydraulic/Motor) - Output Manual Supporter/Stackmaster(optional)

Application of Ridge Cap Roll Forming Machine

Roof ridge caps produced using this machinery are used for a variety of light steel structure construction and large building projects.

Specification of Ridge Cap Roll Forming Machine

Panel Shape As profile drawing and customer’s requirements

Operator needed 1 person

Power Supply 220V/380V/415V/460V, 50/60Hz, 3P (as requests)

Equipment Weight About 8t

Dimension (L*W*H) about 20*2.5*2m

LOADING SIZE Normally need 1x 40' container.

Equipment Color Normally Blue/White, or as requests;

Place of Origin Zhejiang, China (Mainland)

Packing Standard and careful export packing

As one of the most professional tube mill supplier, we provide roll forming equipment, coil upender, roll formed metal roof ridge cap, metal roof ridge cap roll forming machine, ridge cap forming machine and etc. For more information about direct forming technology , please feel free to contact us!

Country: China (Mainland)
Business Type: Manufacturer
Market:Africa
Founded Year:2003
Address:
Contact:hzrollforming .com

more images of Ridge Cap Roll Forming Machine
