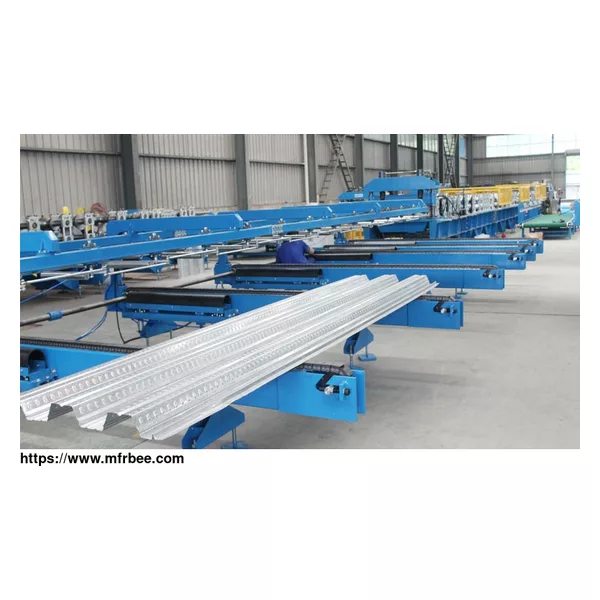

Metal Deck Roll Forming Machine

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

The metal deck roll forming line is a steel structure building material produced by cold roll forming, which is used for supporting floor concrete in the construction industry. It is also called a metal floor deck.

Hangzhou Roll Forming Technology Co., Ltd is a professional manufacturer and exporter of all kinds of standard and non-standard metal deck floor machine. Our metal floor deck roll forming machine has the following characteristics:

1. Our deck floor forming machine can produce a variety of specifications of the floor bearing plate, can also be customized according to the customer's requests, to meet the needs of all customers.

2. With high efficiency, our metal decking machine possesses the production speed of up to 25 m/min.

3. Modular design and manufacturing. parts universal rate are high, simple maintenance.

4. The enhanced design of the mainframe structure and quality control allows our metal deck forming machine to produce thicker plates for you.

5. All the processing of the frame is completed at one time, and the advanced machine tools ensure the accuracy of the size and position of each fit so that our molding unit almost does not need repeated debugging, with very little dependence on personnel.

6. The automatic program control technology is adopted. The parameter setting of the steel sheet floor deck roll forming machine / steel floor deck roll forming machine is simple and convenient, and the degree of automation is high. The system's self-learning ability is strong, and the control system uses the high-quality brand. In addition, the man-machine interaction interface is also very user-friendly.

Welcome both national and international customers to contact us for more information on the steel deck floor roll forming machines.

Steel Floor Deck Roll Forming Machine Main Feature

Metal deck plate adapt to the requirements of the rapid construction of the main steel structure, can provide a firm working platform in a short time, and can be used to lay multiple floors of pressed steel plate, layered concrete slab water construction.

As the tensile reinforcement of concrete floor, the metal deck plate improves the stiffness of the floor and saves the amount of reinforcement and concrete.

Pressure plate surface has embossing between the metal deck plate and concrete to produce the maximum binding force, so that the two into a whole. Metal deck floor usually has stiffening rib, so that the floor bearing plate system has a high bearing capacity.

Under cantilever condition, metal deck plate is only used as permanent template. The length of the cantilever can be determined according to the section characteristics of the bearing plate. In order to prevent the crack of the cantilever plate, negative reinforcement should be provided at the support according to the design of the structural engineer.

If you need any kinds of roll forming machine, please contact us, as a professional roll forming suppliers, RF is willing to offer you high quality products.
