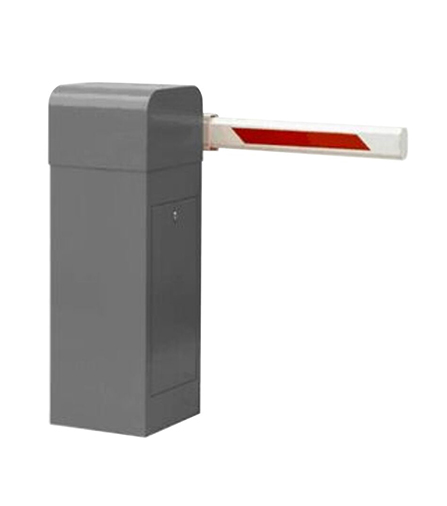

Vehicle Access Control Barrier System JDDZ-7

Features
1. Programmable open & close gate arm speeds
2. Direct drive motor auto-reverses upon contacting obstruction
3. Reliability for high usage
4. Accurate and safe system operation with encoder
5. Auto-close function upon departure of the vehicle
6. Auto reverse feature in case an object has been hit
7. Quality product resistant to weather conditions
8. Low power consumption for economical operation
9. Easy to use and maintain
10. None corrosive housing made of powder coated cold-roll sheet

Applications
Car parks
Company grounds
Residential building
Toll stations
Large business complexes
Airports

Parameters
Power Supply: AC220V/ AC110V±10%, 50/60hZ
Rated Power: 140W
Motor Type: DC 24V brushless digital motor
Motor Speed: 1500RPM
Open Time & Boom Length
1.0~1.2 seconds 2.5 meter straight boom
1.5~2.0 seconds 3.0 meter straight boom
2.0~2.5 seconds 3.5 meter straight boom
2.5~3.0 seconds 4.0 meter straight boom
3.0~3.5 seconds 4.5 meter straight boom
3.5~4.0 seconds 5.0 meter straight boom
4.0~4.5 seconds 5.5 meter straight boom
5.0~6.0 seconds 6.0 meter straight boom
Noise: ≤60dB
Error Action: ≤0.001%
Interfaces: IR sensor, vehicle detector, RS485, open/ close/stop
Output: Relay output, max AC240V, 5A bearable
Life Cycle: 4.5 million times

Vehicle Access Control Barrier System Design

Vehicle Access Control Barrier System Mechanism

Vehicle Access Control Barrier System Diagram

The Right & Left type definition of Vehicle Access Control Barrier System

Project Cases for Vehicle Access Control Barrier System
