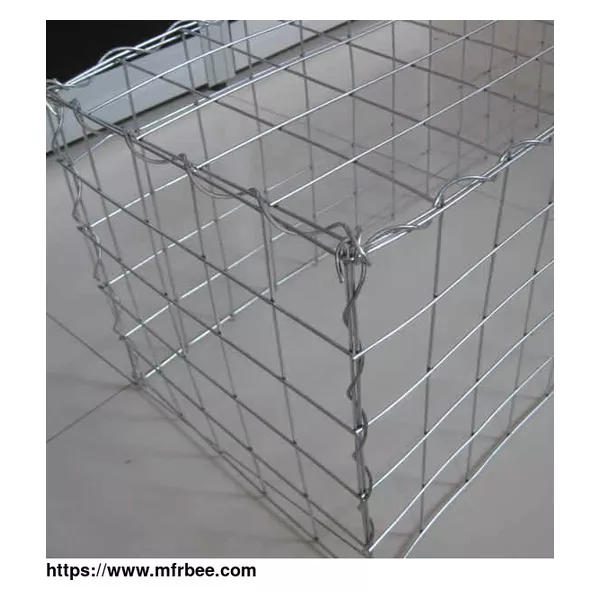

GI. Welded Wire Panel
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Welded Mesh Panels can be used for fencing, fabricating and construction structures. In flat mesh surface, curved or 3D panel types. Welded Wire Mesh Panels are also written as welded mesh panels or sheets, metal panels. It is made of superior quality steel wire, with flat even surface, firm structure, be used extensively in building, agriculture, industrial fencing.
Material: Low carbon steel wire, galvanized wire, stainless steel wire, aluminum-magnesium alloy wire
Surface Treatment:
Hot dipped galvanized after or before welding
Electro galvanized after or before welding
Pvc coated welded mesh panels
PVC+UV coated mesh panels
PVC Coating Thickness: 0.5mm -1.0mm (if need).
Classification:
PVC coated gavanized welded wire mesh fence panel;
100 x 100mm welded mesh panels;
Heavy Duty Metal Wire Rack Welded Panels;
Plastic Coated Welded Fence Panel;
3 D panels for construction.
Packing: Bare or pallet
Common Specification of Wire Mesh Panels:
| Specification List with Holes and Wire Dia. | |||
| Opining | Wire Diameter | ||
| Inch | mm | BWG | mm |
| 1"x1" | 25mmx25mm | 14#-11# | 2.0mm-3mm |
| 2"x1" | 50mmx50mm | 14#-8# | 2.0mm-4mm |
| 2"x2" | 50mmx50mm | 14#-8# | 2.0mm-4mm |
| 3"x2" | 75mmx50mm | 14#-6# | 2.0mm-5mm |
| 3"x3" | 75mmx75mm | 14#-6# | 2.0mm-5mm |
| 4"x2" | 100mmx50mm | 14#-4# | 2.0mm-6mm |
| 4"x4" | 100mmx100mm | 14#-4# | 2.0mm-6mm |
| 5"x5" | 125mmx125mm | 14#-4# | 2.0mm-6mm |
| 6"x6" | 150mmx150mm | 14#-4# | 2.0mm-6mm |
| Note: Special specifications can be customized. |
Uses: Widely used in industry, agriculture, construction, transport, mining, Stadium, lawn, aquaculture
OUR HOT SALE WELDED WIRE MESH PANELS PRODUCTS
4" x 4" Galvanized welded wire mesh panel
| Opining | Wire Diameter | |||
| Inch | mm | cm | BWG | mm |
| 4"x4" | 100mmx100mm | 10 * 10 | 14#-4# | 2.0mm-6mm |
Green Color Coated Welded Fence Panel : 358 Security Mesh Panel
"358" comes from its measurements 3″ x 0.5″ x 8 Gauge, which equates to approx. 76.2mm x 12.7mm x 4mm in metric. It is a professional structure designed for high security fence barriers, combined with an steel framework, coated with heavily zinc or RAL color Powder coating. 358 welded mesh is used with razor wire
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:Africa,Americas,Asia,Emerging Markets,Europe,European Union,G20,Middle East,Oceania
- Founded Year:1998
- Address:803 of TianJing Building, South of Development Zone, Dezhou, China
- Contact:Guo Fuqiang
