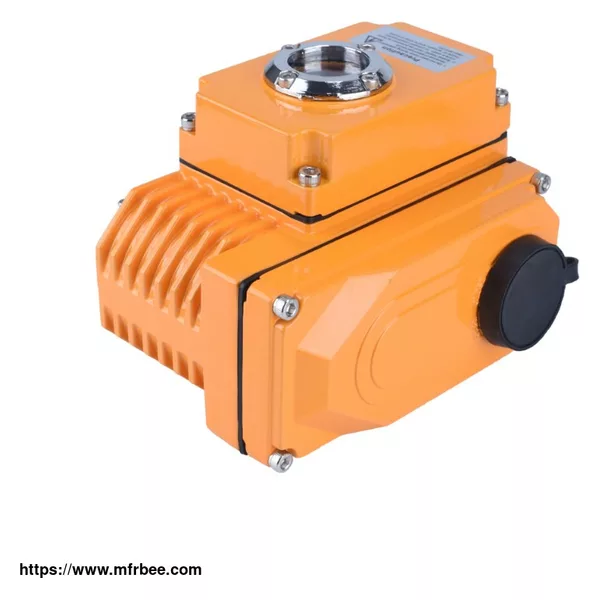

Quarter Turn Electric Actuator
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Description
HEA Series Quarter-Turn Electric Actuator is used for controlling 0~270 degree Rotation valves and other similar products,such as butterfly valve,ball valve,damper,flapper valve,cock valve etc...lt widely applies to petroleum,chemical, water treatment,shipping,peper,making,power plant and other industries.
Drived by 380V/220V/110VAC OR 24V/110VDC Power,Inputs 4~20mA Or0~10 VDC control signal,Moves valve to the right position, and achieve to automatic control.The Maximum output toque is 2000 N.m
Main Product features
Designed for small quarter-turn applications.
Protection class to IP67, NEMA4 and 6
The Actuator can automate the valves requiring up to 270 degree rotation.To help protect the components and extend the actuator's life, an anti-condensation A thermal protector is provided to
protect the motor from over heating.
Technical Parameter and Specifications (On/Off or Modulating Version)
| Model |
Max Output
Torque (N.m) |
Operating
Time 90°(Sec.) |
Drive Shaft(mm) |
Motor
(W) |
Single-phsae
rated current(A) 220VAC/24VDC |
Weight
(kg) |
Flange
Size |
|||
| Square | Deep | Round | Deep | |||||||
| HEA003 | 30N.m | 10// | 9X9 | 13.5 | Ø12.6 | 26 | 8 | 0.15// | 2.5 | F03/F05 |
| 11X11 | 15.5 | |||||||||
| HEA005 | 50N.m | 30/15 | 11X11 | 15.5 | Ø12.6 | 26 | 10 | 0.25/2.2 | 4.1 | F05/F07 |
| 14X14 | 18 | |||||||||
| HEA008 | 80N.m | 30/15 | 11X11 | 15.5 | Ø15.78 | 26 | 10 | 0.25/2.2 | 4.1 | F05/F07 |
| 14X14 | 18 | |||||||||
| HEA010 | 100N.m | 30/15 | 14X14 | 18 | Ø15.78 | 28 | 15 | 0.35/3.5 | 5.1 | F05/F07 |
| 17X17 | 22.5 | Ø 18.95 | ||||||||
| HEA015 | 150N.m | 30/15 | 14X14 | 18 | Ø18.95 | 28 | 15 | 0.37/3.5 | 5.1 | F05/F07 |
| 17X17 | 22.5 | |||||||||
| HEA020 | 200N.m | 30/15 | 22X22 | 26 | Ø22.13 | 45 | 45 | 0.3/7.2 | 9.4 | F07/F10 |
| HEA040 | 400N.m | 30/15 | 22X22 | 26 | Ø28.48 | 45 | 60 | 0.33/7.2 | 9.4 | F07/F10 |
| HEA060 | 600N.m | 30/15 | 27X27 | 32.5 | Ø31.65 | 45 | 90 | 0.33/7.2 | 9.8 | F07/F10 |
| HEA080 | 800N.m | 40/20 | 27X27 | 32.5 | Ø31.65 | 45 | 180 | 0.47/11 | 15 | F10/F12 |
| HEA100 | 1000N.m | 40/20 | 27X27 | 32.5 | Ø31.65 | 45 | 180 | 0.47/11 | 15 | F10/F12 |
| HEA200 | 2000N.m | 45/22 | 27X27 | 32.5 | Ø31.65 | 45 | 180 | 1.5/15 | 15.3 | F10/F12 |
Performance Features
| Fuction: | On/off or modulating |
| Material | |
| Housing: | Aluminum alloy,epoxy powder coated |
| Gear: | Steel/aluminum bronze |
| Screws: | Stainless steel |
| Indicator Cover: | Polycarbonated |
| Shaft/Adaptor: | Alloy steel |
| Seal: | NBR |
| Lubrication: | Aluminum based grease |
| Technical Date | |
| Power Supply: | 24VDC,110VAC,220VAC |
| Motor: | Squirrel cage asynchronous motor |
| Limit Switch | SPDT,250VAC 10A,each for open and close positions |
| Rotation: | 90° （±10°）other rotation on request |
| Manual Operation: | Mechanical handle standard |
| Conduit Entry: | 2 x M18 |
| Operating Temp: | -20°C to + 70°C |
| Ambient Humidity: | Max.90%RH |
| Vibration Tested: | XYZ10g,0.2~34Hz,30 minutes |
| Mounting: | ISO5211 |
| Torque Output: | 30Nm to 1000Nm (2000Nm on request) |
| Self-locking device: | Self-locking by worm and worm gear |
