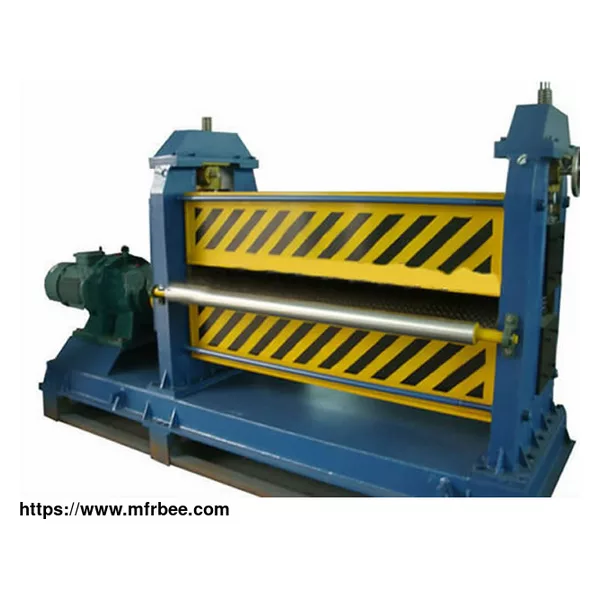

Chequer (also written as Checkered) plate embossing machine is mainly for producing anti-skidding checkered steel
Machine Roller Specifications: DIA450~500mm, Checkered Plate
Width:1000~1800mm.
Pattern: checkered by laser engraving.
Pressure mode: hydraulic 50~100T.
Working speed: 1~20m/min, speed changed by frequency converter.
The chequered plate processing machine can be used for production of metal checker plates, it is also used for leather embossing and other uses.
Main technical data for chequer plate machine:
Suitable plate | 0.2-0.5*1250mm |
Production speed | 0-25m/min |
Pressure adjusting | By guiding screw |
Pattern form | Double-layer |
Motor power | 11KW |
Power supply | 380V, 3Phase, 50Hz or as required |
Roller size | D400*L1400mm |
Machine dimension | 3300*1200*1500mm |
The upper rollers of the machine can be moved vertically and horizontally. The vertical lifting is the hydraulic transmission. The hydraulic oil in the hydraulic cylinder acts on the piston rod to obtain horizontal movement. Torque is transmitted through the turbine rod box, ...
