PM Series

FOB Price
USD $500.00 / Piece
Place Of Origin
China
Minimum Order
2000
Packaging
Plywood case
Delivery
15 Days

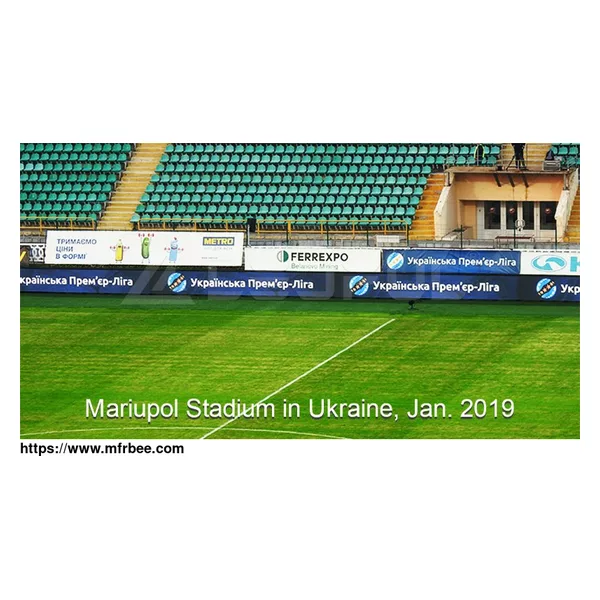

Sport Stadium Perimeter LED Display

Parameter
Indoor/Outdoor PM IPM6 IPM10 OPM8 OPM10 OPM16
Pixel Pitch(mm) 6 10 8 10 16
Pixel Matrix Per Sq.m 27777 10000 15625 10000 3906
Pixel Configuration SMD3528 SMD3528 SMD3535 SMD3535 SMD3535
Brightness (nits) 2200 1800 6800 7500 8000
Scan 1/8 1/4 1/3 1/2 1/1
Module Dimension 192x192mmZ0.63x0.63ft 320x160mm/1.05x0.52ft 320x160mmZ1.05x0.52ft 320x160mmZ1.05x0.52ft 256x256mmZ0.84x0.84ft
Cabinet Dimension 960x960mm/3.15x3.15ft 1280x960m m/4.2x3.15ft 1280x960m m/4.2x3.15ft 960x960mm 73.15x3.15ft 1024x1024mmZ3.36x3.36ft
Cabinet Resolution 160x160 128x96 160x120 96x96 64x64
Cabinet Weight 40kg / 88lb (Iron) 44kg / 97lb (Iron) 49kg / 1081b (Iron) 33kg Die casting aluminum 46kg/ 1011b (Iron)
Power Con. (Max / Avg) 550/ 100 w/sq.m 500 / 90 w/sq.m 680/ 120 w/sq.m 900 / 180w/sq.m 690/ 130 w/sq.m
IP Rate IP43 IP65
Service Access Front / Rear Rear
Refresh Rate (HZ) 2880 >1920
Grey Scale (bit) 14bit 16bit
Viewing Angle (H/V) 140/140 140/140
Input Voltage (AC) 110V/240V 110V/240V

* Specifications and photos are subject to change without prior notice.

As one of the most professional outdoor led screen manufacturers, we provide HD LED panel, perimeter display, stadium perimeter led display, perimeter led display, perimeter led screen, perimeter LED display, perimeter LED screen, led perimeter screen, led perimeter display, outdoor display screens and etc. Contact us to know more.
