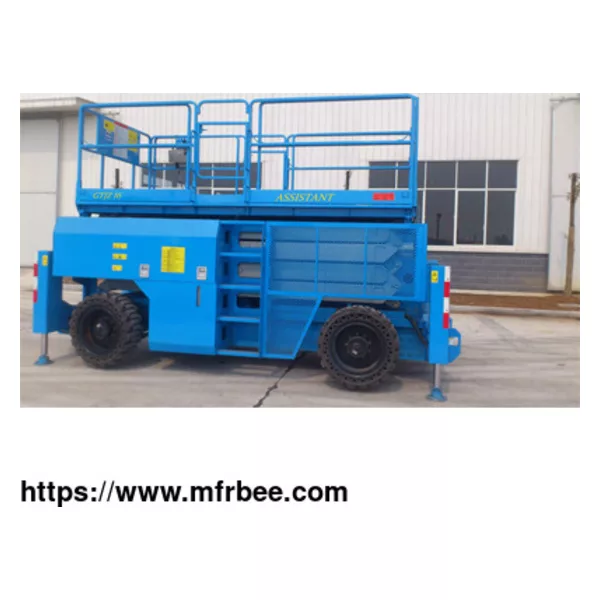

Diesel Engine Self Propelled Scissor Lift

FOB Price: USD $150,000.00 / Piece
Place Of Origin: Shanghai

Minimum Order: 1

Packaging: NUDE

Delivery: 30 Days

We are professional Diesel Engine Self Propelled Scissor lift supplier and factory in China. We can produce the product according to your requirements.

Product Features

Diesel scissor lift

1. Strong power: The engine scissor lift has powerful power, and the four- wheel drive has strong climbing capacity. The scissors lift can shift high and low speeds.

2. Draggable engine tray: The engine is installed on the tray that can be dragged out, which facilitates maintenance and repair.

3. Active Oscillation Axle: Active oscillation axle can perceive the terrain, and can guarantee that the machine can land on four wheel even on uneven road without reducing the driving force.

4. Large working space: The maximum size of platform extended by cylinder forward double direction can reach 6.65*1.83m.

5. Outrigger: The hydraulic outriggers can be used to level vehicles in case of operation on uneven ground.

Techenical feature

1. Controlling System

Both ground control and platform control panel.

The ground control provides the lifting feature and the platform control panel provides all functions of lifting and/or descending, turning and travelling.

The one handed proportional joystick made by SAUER(USA) provides flexibility, and can be satisfactory for the operators in many different situations.

2. Platform and platform Loading Capacity

The loading capacity of the platform is up to 680kg-1180kg.

Platform extension part highly extends the working area.

3. Safety Performance

A safety bar has attached on the 2 nearby scissors, to guarantee the safety of the serviceman while repairing.

For the purpose of having a more stabilized working condition, the gravity of the entire machine is located on the under-part.

Double acting lift cylinders with lock valves and manual emergency lowering facility.

The downward movement shall be automatically stopped by a safety device, Further downward movement shall only be possible after 5s delay and the speed is lower(50%).

Configration sandard

1. Engine: Perkins from UK

2. Pump: SAUER from USA

Motor: SAUER from USA

Engine Engine

3. Travel reducer:PMP from Italy

4. Valve: Sant from Italy

Travel reducer Valve

5. Joystick: Danfoss from USA

6. Sensor: Meas from USA

Specifications

NO Item GTJZ10B GTJZ13 GTJZ16

MEASURMENTS

1 Working height maximum 11.78m 14.82m 17.86m

2 Platform height maximum 10.08m 13.12m 16.16m

3 A1 Platform Length (stowed) 3.95m

4 A2 Platform extended Length LEFT1.22m/RIGHT1.52m

5 B Platform Width 1.83m

6 C Widths 2.28

7 D Height-stowed 2.74m 2.95m 3.16m

8 E Length-stowed 4.03m/4.9mwith outriggers 4.03m/4.9mwith outriggers 4.9m with outriggers

9 F Wheel base 2.84m

10 G Ground clearance center 0.23m

PRODUCTIVITY

11 Gradeability 50%

12 Lift capacity 1180kg 680kg 680kg

13 Lift capacity(extension deck) 230kg

14 Turning radius (outside) 5.2 m

15 Tire 33*12-20 solid tire

16 Travel speed Stowed 6.3km/h

17 Raised or extended 1.1km/h

Power

18 Power 38KW

19 Fuel tank capacity 115L

20 Hydraulic tank capacity 170L

21 Drive and turn mode 4WS 4WD

Weight

21 Weight 5850kg 6350kg 7850kg

22 STANDARDS COMPLIANCE EN280.JG/T5101.Q/ADZV001-2008

If you want to know the price of articulated fork truck, please leave us a message.
