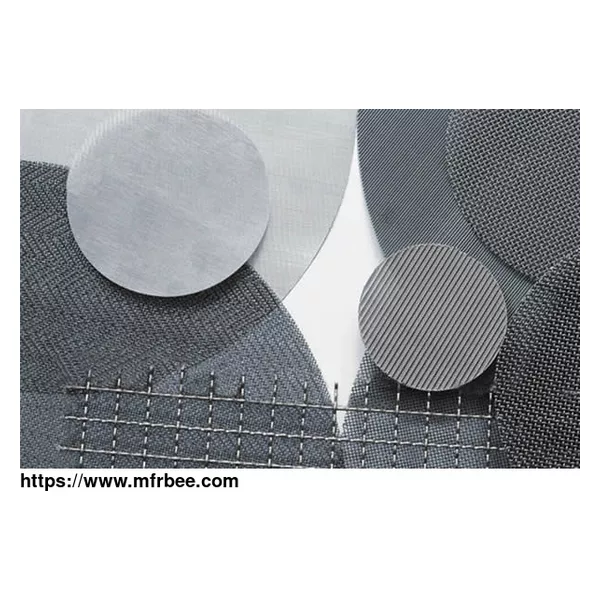

Single Layer Wire Mesh Disc
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Perforated Mesh, Expanded Metal & Woven Wire Mesh Discs
Single Layer Disc Screen in stainless steel and brass mesh with disc diameter ranging from 1-60 inch
Single-layer disc is in contrast with multi-layer
Disc Diameter: 1-60"
Disc shapes: Rectangle, oval, round, square and annular mesh sheets.
Material Options:
Stainless Steel Mesh (SS 304,SS 304L,SS 316,SS 316L);
Copper Mesh (Red copper Mesh,Brass Wire Mesh,Phosphor Bronze Wire Mesh);
Low Carbon Steel Mesh;
Aluminum Mesh.
Application:
Features: Smooth surface with no sharp edges, burrs or acute angles. Anti-abrasive & anti-corrosive in nature, and high filtration capacity. Available in different size and variants according customers order.
Edge: With or Without Framework.
Woven Mesh Filter Media Range:
Wire Diameter:0.025-3.4mm
Aperture Size:0.026-23.4mm
Weave Type:Plain Weave (3-300 Mesh); Twilled Weave(20-635 Mesh); Dutch Weave (7x40mesh-325x2300 mesh)
316L Stainless Steel Dutch Weave Wire Mesh Filter Cloth Discs:
Single screen framed round shape filters with 0.1mm, 0.3mm and 1mm screens.
Expanded Mesh Discs of Diamond Opening:
Spot Welded 304 Mesh Cloth Extruder Screen Discs:
80x80 circular screen with circular diameter of 90 mm for extruder filtering
Square Wire Mesh Discs Used as Extruder Screen Replacable in Plastic Processing:
Mesh: 20mesh x wire 0.40
Spot Weld Extruder Screen, Single Disc
152x30, 121um filtration
Extruder screens, single disc type in mild steel material
Plain steel mesh disc, diameter 220mm, 30 mesh x wire 0.30mm
Plain steel mesh disc, diameter 170mm, 40 mesh x wire 0.25mm
Standard wire mesh for foam extruder screen
Three types:
Mesh #40, in disc diameter 120mm
mesh #40, in disc diameter 175mm
mesh #100, in disc diameter 175mm
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:
- Founded Year:
- Address:No. 118 Dong Fang Hong Road,Dezhou City, Shandong Province.
- Contact:Gary Bill
