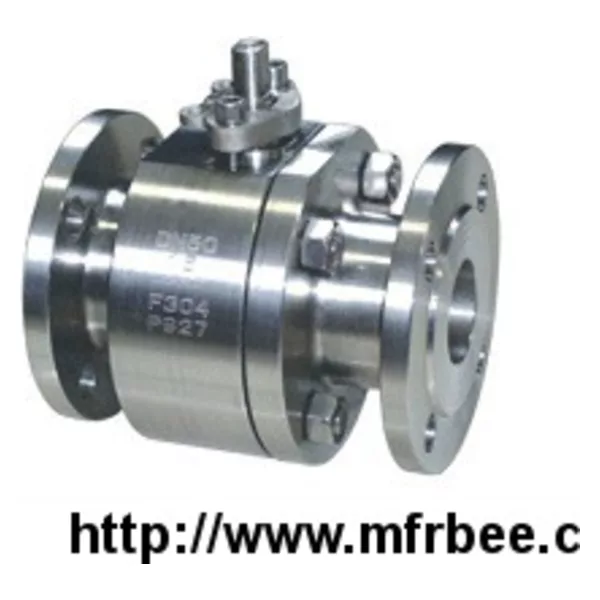

2-PC Body Floating Ball Valve
Product Quick Detail
- Packaging
- 21
- Delivery
- 15 Days
Specifications
Product Name: 2-PC Body Floating Ball Valve
Product Details:
Place of Origin: China
Certification: ISO9001-CE
Product Description
Product design and scope
Design standard:ASME B16.34/ API 608
Length of structure:ASME B16.10
Flange connecting end:ASME B16.5
Butt welding connecting end:ASME B16.25
Wall thickness:ASME B16.34
Fireproof test:API 607/API 6FA
Inspection and test:API 598
Pressure and temperature rating:ASME B16.34
Product scope:NPS 1/2″~NPS 8″,CL150~CL600
Main body material:WCB､LCB､WCC､CF8､CF8M､CF3､C3M､A890 4A､A105､LF2､F304､F316､F304L､F316L etc.
Valve seat material:PTFE､RPTFE､NYLON､DEVLON､Derlin､PEEK､PPL or metal hard seal etc.
Drive device:handle, worm wheel, electric, pneumatic etc. http://www.fagong-valve.com
- Country: China (Mainland)
- Business Type:
- Market:
- Founded Year:1998
- Address:Five star Industry Zone,Town Oubei,City Wenzhou,
- Contact:mj mj
