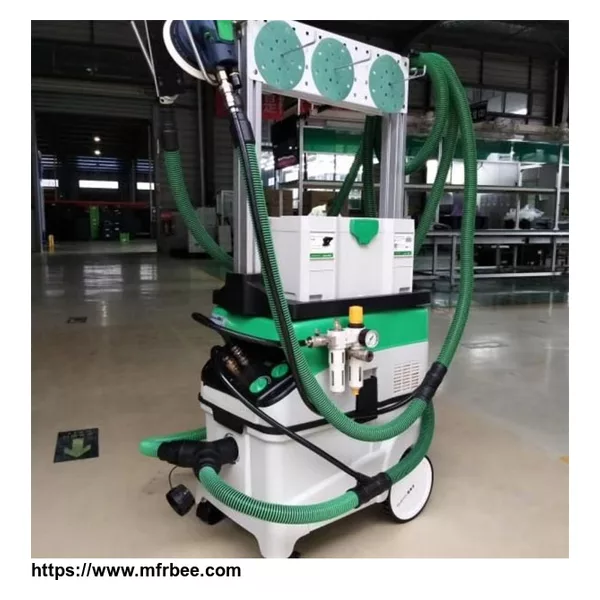

Mobile Dust Extractor (Dry grinding system)
Product Quick Detail
- FOB Price
- USD $100.00 / Piece
- Minimum Order
- 1
- Place Of Origin
- China (Mainland)
- Packaging
- Size (L*W*H): 1510*660*580 MM
- Delivery
- 15 Days
Specifications
Product details
1. The ABS plastic shell is the same as used on the important automobile parts: high strength and not easy to oxidize;
2. DOMEL imported motor, no need to replace the carbon brush: long life and low noise;
3. The power cable adopts automatic shrinking device: beautiful and practical;
4. The core components of pneumatic and electric grinding heads are imported parts: stable, durable and efficient;
5. Three types of vacuum cleaners: electric type, pneumatic type and pneumatic-electric type. Electric type can only be equipped with electric grinding head, pneumatic type can only be equipped with pneumatic grinding head, pneumatic-electric type can be equipped with both electric and pneumatic grinding head;
6. Warranty of the whole machine (except for consumables, such as filtering Hepa, dust bag, grinding disc, sandpaper, etc.) for one year!
Same production factoryasFESTOOL,same performance.
| No | Part Name | Function Description | Quantity | Unit |
| 1 | Main unit of industrial vacuum cleaner | main unit(contains 1-6 items) | 1 | Set |
| 2 | Imported motor | DOMEL brush motor | 1 | Set |
| 3 | Control System (Circuit board) | Controls the program execution of the entire machine | 1 | Piece |
| 4 | 3.5m tube assembly (antistatic) | equipped with manual grinding plate or electric grinding head | 1 | Piece |
| 5 | Hepa | acts as a filter block | 1 | Piece |
| 6 | Dust bag | Special bag | 4 | Piece |
| 7 | Electric Round Grinder | Brushless Electric Round Medium Grinder (6 Inch 17 Hole) | 1 | Set |
| 8 | Toolbox | for storage of equipment such as grinding heads | 1 | Set |
| 9 | Vacuum Hand Grindingplate | 70 * 198MM | 1 | Piece |
| 10 | Round sandpaper | P80, P120, P180, P240, P320, P400, P500 (free) | 28 | Piece |
Product Parameters:
Power : 800 W±10%
Maximum load: 2400w
Maximum suction: 3900L / min
Filter Surface: 6318 cm²
Max. Vacuum: 24000 pa/ 210 mbar
Dust bag volume: 38L / 36L
Noise Value: 68 dB
Size (L*W*H): 1510*660*580 MM
Weight: 15kg
Cable length: 8M
