CBB61 AC Electric Fan Capacitor
Product Quick Detail
- FOB Price
- USD $5.00 / Piece
- Place Of Origin
- China (Mainland)
- Minimum Order
- 6.5
- Packaging
- To be shipped in vacuum-sealed metallized plastic bags
- Delivery
- 7~15 Days After Payment
Specifications

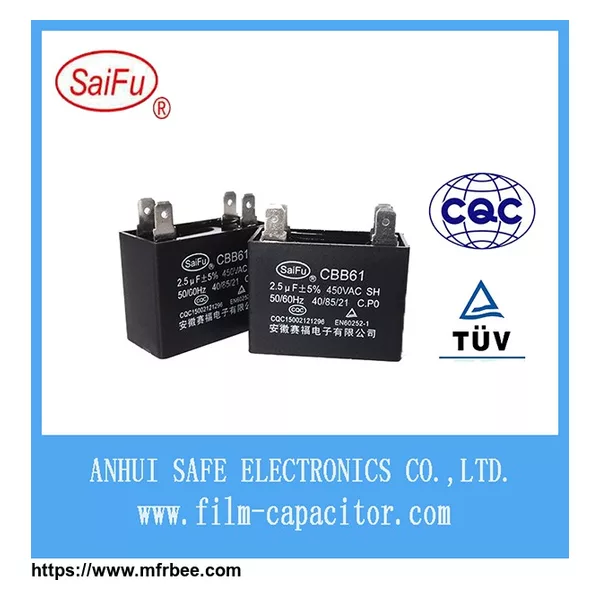

1.CBB61 AC Electric Fan Capacitor
CBB61 Capacitors are rectangular in shape and are called metallized polypropylene film capacitors.It is based on polypropylene film capacitor dielectric,plate is coated on the film on a very thin layer of conductive material ,generally aluminum or galvanized aluminum ,and then wound.The two ends of the wound core are sprayed with molten metal as capacitance leads,so the inductance of the capacitance is small.One of the biggest characteristics of it is self-healing property,it will not occur capacitor internal short circuit.
2.Outline Drawing
3.Specifications
| Reference standards | GB/T 3667.1(IEC60252-1) |
| Climatic category | 40/70/21、40/85/21 |
| Class of operation | Class B(10000h) Class C(3000 h) |
| Class of safety protection | S0/S3 |
| Voltage range | 250VAC、370VAC、440VAC、450VAC |
| Capacitance range | 1～35uf |
| Capacitance tolerance | ±5%、±10%、±15% |
| Dissipation factor | 20*10-4(100Hz,20ºC) |
| Test voltage terminal to terminal UTT | 2Un for 2 seconds |
| Test voltage terminal to case UTC | (2Un+1000)VAC or 2000VAC-50Hz for 60 seconds |
| Insulation resistance | ≥ 3000s(100Hz,20 ºC,1min) |
4.Applications
(1)Widely applied to the starting and running of AC single-phase motors at 50Hz/60Hz frequency power.
(2)Applied to electric fan,air condition blower,ventilator,etc.
