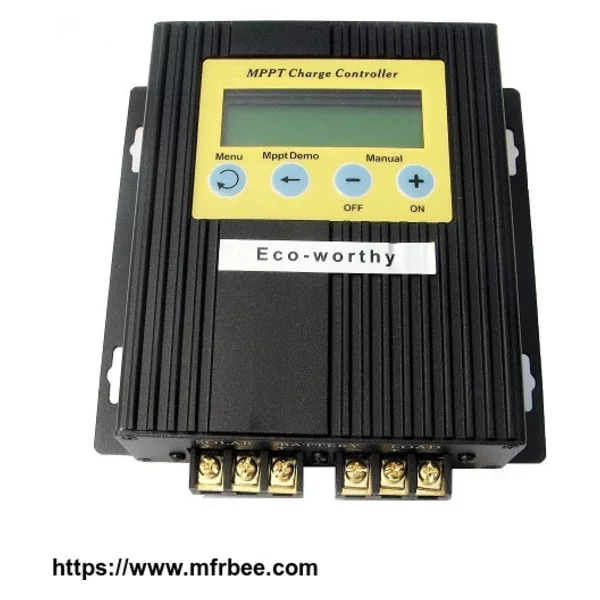

ECO-WORTHY 20A MPPT Solar Charge Controller 12V/24V
Product Quick Detail
- FOB Price
- USD $70.00 / Piece
- Place Of Origin
- USA
- Minimum Order
- 1
- Packaging
- 1
- Delivery
- 15 Days
Specifications
Package Included
1pc 20A MPPT charge controller
1pc Manual
Please check The Manual of 20A MPPT Charge Controller.pdf
USA, UK, Germany, Australia, China Stock Usually Ships in 3 to 5 Business Days
ECO-WORTHY 20A MPPT Solar Charge Controller 12V/24V
Maximum power point tracking solar charge controllers (MPPT
Features
1. High-speed MPPT technology: MPPT with LCD display, efficiency > 99%, employs a DC converting circuit, conversion efficiency > 96%
2. More selections for your need: Five output modes: Manual, Standard, Timer, Light sensor, Light sensor on + timer off
3. Advanced electronic protection: over charge, over discharge, overload and short circuit protection
4. Tiny self-consumption (<15mA 12V / <25mA 24V)
5. 3-stage charging algorithm, impulse, bulk and float
6. Power meter function: LCD display shows the battery voltage, charging current, charging power, output status
7. Built in timer, suitable for a periodic discharge system such as solar street lights, solar pumps etc
8. Fully Aluminium housing incorporating a large heat sink
9. 1 Year Warranty
| Specifications | |
| Rated system voltage | 12V/24V DC |
| Max open circuit voltage of solar panel | 15-50V DC |
| Max output current | 20A |
| Max discharge current | 20A |
| Over discharge voltage | 10.2-12.5V(+/- 0.2) |
| Restart voltage | 10.2-13.5V(+/- 0.2) |
| Constant voltage (Over charge )voltage | 13-15.5V(+/- 0.2) |
| Float voltage | 12.5-14.5V(+/- 0.2) |
| Converter type | Buck |
| Converter efficiency | >96% |
| Max increase efficiency | >43% |
| Tracking efficiency | >98% |
| Precision of clock | +/-50S/Month |
| Operating temperature | -20 to +50 degree C |
| Protect class | IP22 |
| Size | 140mm*147mm*42mm(5.53*5.81*1.66In) |
| Weight | 550g(1.21lbs) |
