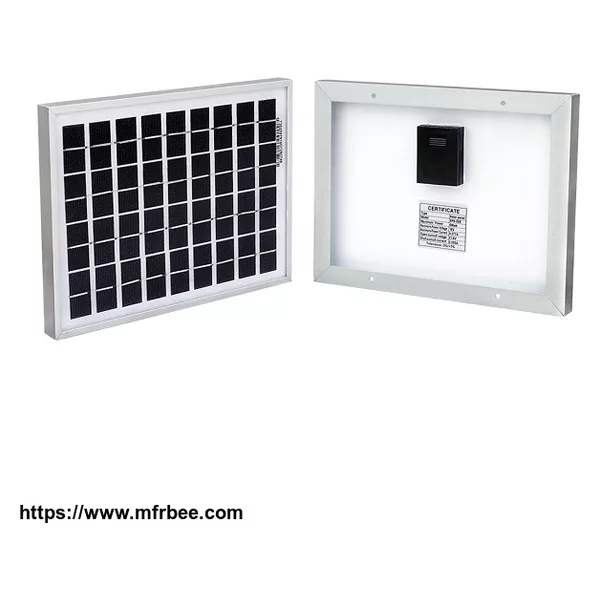

Features
1. Widely used on small dry camp and off-grid lighting applications
2. Easy Installation with the pre-drilled hole.
3. Waterproof IP-65 Rated Junction Box: Advanced water and dust proof level (complete protection against environmental particles and low-pressure water jets).
4. Resistance to Salt Corrosion and Humidity.
5. Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa), Lightweight anodized
aluminum frame and reinforced safety and anti-reflection coated glass 3.2mm thick (tempered + patterned).
6. Warranty: 5-year material and workmanship warranty.
Specification
Rated power | 5W |
Voc | 22.41V |
Vop |
17.9V
|
Short circuit current (Isc) | 0.3A |
Working current (Iop) | 0.28A |
Output Tolerance | ±3% |
Temperate coefficient of Isc | (010+/- 0.01 )%/ ℃ |
Temperate coefficient of Voc | – (0.38 +/-0.01 )%/ ℃ |
Temperate coefficient of power Voc | -0.47%/℃ |
Temperature range | -40℃to +80℃ |
Frame | Heavy duty aluminum |
Guarantee of power | 90% within 10 years 80 within 25 years |
Kind of glass and its thickness | Low Iron, high transparency tempered glass of 3.2mm |
SLA Battery Voltage | 12V |
Dimensions (L x W x H)mm | 255×194 x15(10*7.6*0.6in) |
Net Weight | 0.58kgs(1.3lbs) |
Quality Assurance Testing
1. Thermal cycling test
2. Thermal shock test
3. Thermal/Freezing and high humidity cycling test
4. Electrical isolation test
5. Hail impact test
6. Mechanical, wind and twist loading test
7. Salt mist test
8. Light and water-exposure test
9. Moist carbon dioxide/sulphur dioxide
Application
This small solar panel can be used for charging various electronic devices, such as mobile phone charging.
