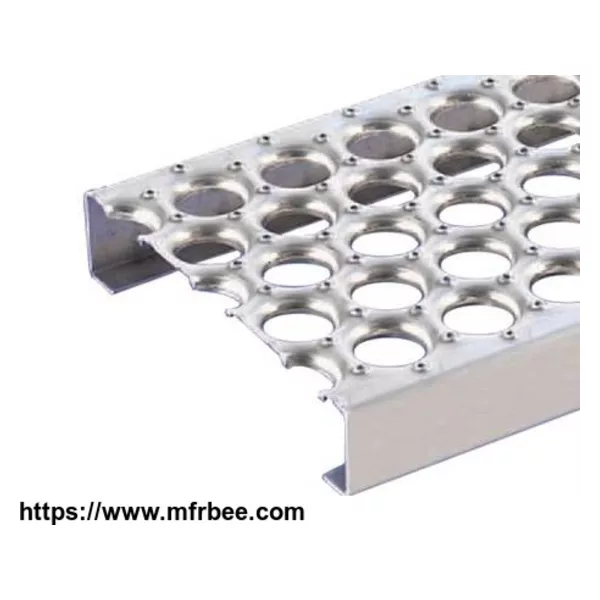

O-Grip Plank Grating
Product Quick Detail
- FOB Price
- USD $100.00 / Piece
- Place Of Origin
- China(Mailand）
- Minimum Order
- 1
- Packaging
- 2
- Delivery
- 15 Days
Specifications
O-Grip plank safety gratingis covered bydebossed holes
O-Grip plank safety grating is fabricated with a variety of regular dimensions and custom sizes for special orders. Available in mill galvanized plain steel,aluminum alloy
OGP-01: O-Grip Plank Grating.
OGP-02: O-Grip Plank Walkway.
Product description:
- Item: O-Grip plank grating.
- Width: 5" (2-Hole), 7" (3-Hole), 10" (5-Hole), 12" (6-Hole), 18" (10-Hole), 24" (13-Hole), 30" (16-Hole).
- Length: 10' and 12'.
- Material options:
- Mill galvanized carbon steel: 11 ga. and 13 ga.
- Aluminum alloy: 0.125".
- Stainless steel type 316: 16 ga.
- Available in HRPO plain steel and stainless steel Type 304.
Features & benefits:
- Debossed holes and perforated buttons for slip protection in all conditions.
- Large opening area permits free flow of liquids, mud, snow and other debris.
- Light-weight structure for easy and quick installation.
- Economical cost and free maintenance.
Inquiry for Our Product
Mengke Safety Grating Co., Ltd.
- Country: China (Mainland)
- Business Type:
- Market:Interlock Grating Accessories Interlocking Stair Treads Interlocking Plank Grating
- Founded Year:1983
- Address:
- Contact:xueyan wang
