Quality Gabion Mattress for Slope Stabilization

Gabion mattress is known as Reno mattress as it is firstly applied to Reno River in Italy. Galvanized, Galfan and PVC coated gabion mattress refers to a rectangular structure similar to gabion baskets except its low height. Generally, a gabion mattress is composed of hexagonal double twist steel wire mesh or welded wire mesh panels as shown in the following two pictures.

GMA-01: Gabion mattress - hexagonal type

GMA-02: Gabion mattress - welded type

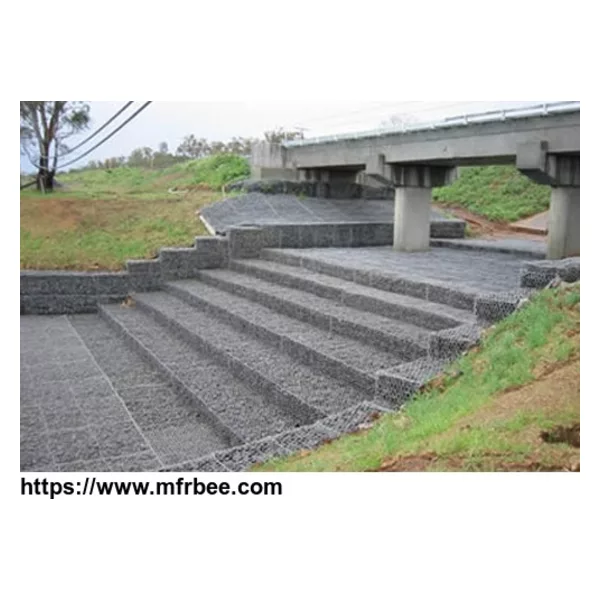

Filled with rocks, gabion mattress creates an integral robust unit for scour protection and erosion control from three aspects. Gabion mattress efficiently improves the stability of river side slopes and protects them from scouring through ensuring a natural convection exchange between water body and earth. Meanwhile, it increases the roughness coefficient of river bank owing to its excellent shear resistance. In addition, green vegetation can be planted to reinforce the slope and create more pleasing landscape.

Applications:

Features:

• High durability - Made of high quality low carbon wire, our gabion mattress is strong and durable; meanwhile, all edges are reinforced with wire selvage for added strength. It can bear the heavy weight of dense hard rocks and has high shear resistance than traditional riprap so that it allows for better soil stabilization.

• Superb permeability - The space between rocks allows for excellent drainage to reduce the hydrostatic pressure as well as ensure natural water exchange and ecological equilibrium.

• Integrity - Gabion mattress can be divided into chambers by inserting diaphragms, meanwhile, independent units can be fastened together to form an integral monolithic structure - just using steel tie wire.

• Environmental friendly - Gabion mattress, mounted on the bank of rivers and streams can effectively prevents soil erosion. Additionally, vegetation on the mattress improves the soil protection as well as decorates the surroundings.

• Economy - The filling materials such as local rocks and stones

Beside above features, our hexagonal twist gabion mattress has excellent flexibility to adjust their own healing - that is way it has adaptability to various foundations such as those easy to subside and deform. But welded gabion mattress has lower flexibility yet more solidity and shape control. So you can choose the optimal one according to different mounting places of your projects.

GMA-03: Gabion mattresses can be fastened together to form integral unit for higher strength.

Details:

• Material: high quality low carbon steel.
• Structure: hexagonal double twist steel wire mesh or welded wire mesh
• Anti-rust treatment: Zinc - 5% Aluminum plated, hot dipped galvanized, PVC coated hot dipped galvanized.
• Height: 0.15m to 0.3m.
• Opening: 5cm × 7cm, 6cm × 8cm, 8cm × 10cm.
• Mesh wire diameter: 2mm to 2.7mm.
• Selvage wire diameter: 2.7mm to 3.4mm.
• Tie wire diameter: 2mm to 2.7mm.
• Metal coating thickness: no less than 245g/m².
• Tensile strength: no less than 389Mpa.
• Standard: ASTM, EN or other custom standards.

GMA-04: Gabion mattress can be made into walkway.

GMA-05: Gabion mattresses are used for aqueducts.
