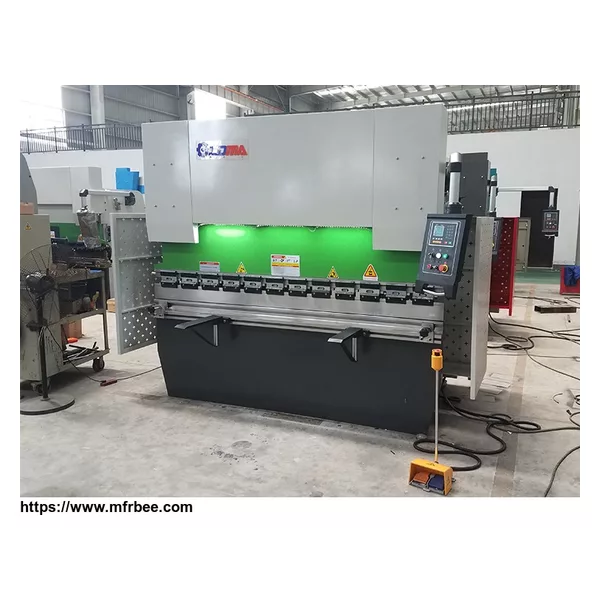

WC67K NC Hydraulic Plate Press Brake with E21 Controller

FOB Price
USD $100,000.00 / Piece
Place Of Origin
China (Mainland)
Minimum Order
1
Packaging
N/A
Delivery
15 Days
1. The WC67K NC Hydraulic Press Brake-E21 design meets EU international standards. The fuselage eliminates internal stress by annealing and ensures higher precision and strength. All NC hydraulic plate bending machines are designed using SOLID WORKS 3D programming and made with enhanced ST44-1 quality steel with the latest technology;
2. The WC67K series torsion axis hydraulic plate press brake uses Chinese ESTUN NC control system to help you increase your productivity and keep the lowest cost and lower maintenance costs. High quality and repetitive bending is obtained by using synchronized cylinders and valves;
3. E21 system programming control system and inverter realize the accurate positioning function of X axis Y axis;
4. Cutting-edge frequency response hydraulic control technology, rigid upper beam runs on 8-point bearings with bending precision of +/-0.01 mm;
5. Optional V-axis compensation function, and select the appropriate mold to bend complex shape work pieces easily.STANDARD EQUIPMENT

NC Hydraulic Metal Plate Bending Machine Standard Press Brake Related Equipment:

1. Chinese E21 NC controller.
2. Y-axis and X-axis system control adjustment and frequency converter controls the positioning of them.
3. Linear guide rail and ball screw accuracy of 0.01mm(HIWIN,TAIWAN).
4. Steel mono-block construction.
5. Adjustable stop fingers.
6. Standard electrics from Schneider, France.
7. Standard oil tube connectors from EMB Germany.
8. Standard valves and oil pump from Bosch Rexroth Germany.
9. Standard main motro from Siemens Germany.
10. Hydraulic and electrical overload protection.
11. Light guards ensure the safety of operators during operation.

Chinese ESTUN E21 NC System:

  • Monochrome LCD box panel.

  • Integral factor freely programmable.

  • Automatic positioning control(commen motor or inventer).

  • Spindle offset allowance.

  • Internal time relay.

  • Stock counter and Internal time relay.

  • Backgauge position display with 0.01mm resolution.

  • Language:Chinese and English menu operation.

  • Program memory of up to 40 programs and up to 25 steps per program.

E21 NC Controller & Frequency Converter:


E21 and inverter realize control through the bus communication implementation, the fast, accurate positioning and the built-in time relay can realize most of the logic functions and greatly increase the working efficiency.
DETAILED PICTURES
European standard Punch & Dies:
made by 42CrMo steel.
Main motor: Siemens Germany
Longer service life and low noising during the work.
Valve: Bosch Rexroth, Germany
Sealing rings: NOK, Japan
Integrated hydraulic system can effectively prevent the problems caused by hydraulic oil leakage.

Oil pump: Sunny, America
Guaranteed long service life and low working noise.
Ball screw & linear guide: HIWIN, Taiwan, China
Double ball screws&linear guides in the two sides of the machine to gurantee high precision of backguage device.
Electrics: Schneider, France
Better stability and longer service life.
Photoelectric Proximity Switch: The operation of double protection oil cylinder exceeds the schedule.


OPTIONAL Equipment:

Photo-electric protection:The scientific and efficient guarantee of the operator's safety during operation.
Mechanical crowning:improving the bending angle accuracy and linearity.
Mechanical quick clamps:changing the upper die more safe and efficiency.
