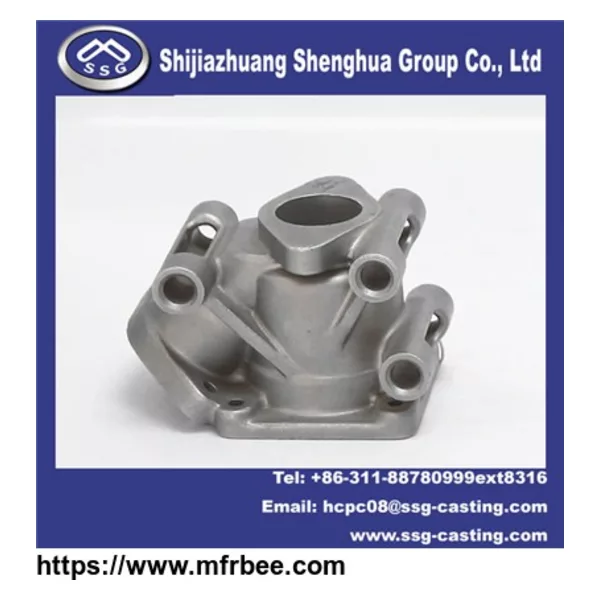

Investment Casting Valve Parts Valve Body
Product Quick Detail
- Kg
- kg
- Minimum Order
- 300
- Place Of Origin
- china
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Quick Information
- Brand Name:SSG
- Place of Origin:China
Description
Detailed introduction
Our company produce different kind of valve parts, like Butterfly valve,Stop valve,Solenoid valve, safety valve, high pressure valve.
Mainly used in Petroleum and chemical industry,food equipment, marine equipment and Pulp and paper field.
The material of these parts including CF8,CF8M,CF3M,1.4308, 1.4408 ect.
Normal stainless steel,and also some duplex stainless steel like 1.4462 and heat resistant steel 1.4848.
Some parts request WCB,1018 material.
we use soluble core,ceramic core to get the complex inner structure.
We have 11sets of CNC machining center and 27sets lathe to machine these parts.
Valve Body
| Technical Capacity | |
| R&D | Software: Solid work, CAD, Procast |
| Development Cycle of Samples: 25 to 35 days | |
| Material Designation. | More than 150 types |
| Technological Parameter | Piece Weight: 2g to 55kg |
| Max Dimension: 600mm for Diameter or Length | |
| Min Wall thickness: 1.5mm | |
| Casting Roughness: Ra 3.2-6.4, Machining Roughness: Ra 1.6 | |
| Tolerance of Casting: VDG P690,D1/ CT5-7 | |
| Tolerance of Machining: ISO 2768-mk/ IT6 | |
| Inner Core: Ceramic Core, Urea Core, Water soluble Wax Core | |
| Heat Treatment | Normalizing, Tempering, Quenching, Annealing, Solution Annealed , Quenching & Tempering, Carburization |
| Surface Treatment | Polishing, Hand Blasting, Zinc Plating, Nickel Plating, Oxidation Treatment, Phosphating |
| The Third Party Inspection | Cleanliness Inspection, X-ray Radiographic Inspection, Magnetic Powder Inspection |
Production Capacity
Designed Capacity: 200 ton per month
Actual Capacity: 150 ton per month
Company Profile
Shijiazhuang Shenghua Group Co., Ltd, SSG for short, was established in 1994. It was developed from Shijiazhuang Huacheng Precision Casting Co., Ltd. After 20 years of unremitting efforts, SSG has now developed into a modern enterprise group and has 8 subsidiaries engaged in casting, machinery manufacturing, real estate development, quasi - financial investment and business services.
Group headquarters plant expansion plant: located in the factory on the west side, the workshop covers an area of about 3,000 square meters, for heat treatment workshop and finished warehouse.
SSG takes investment casting and machining as foundation and has been engaged for more than 20 years since its establishment. Now SSG has over 30,000 square meters of factory buildings and 400 employees, including 40 senior technical personnel. The annual production of Casting is 1,800 tons. Besides, SSG is already accredited with ISO9000 international standard quality system certification in 2000, PED-CE certification of EU and Germany AD-2000 certification in 2003, as well as TS16949 certification by TUV Company in 2009. Products are involved in automotive industry, machinery industry, petroleum industry, chemical industry, electrical industry, aerospace industry and others. The market covers North America, Europe, Britain, Japan and other countries and regions.
SSG is always adhering to the business philosophy of "integrity and quality is the foundation". By virtue of the modern management, advanced production equipment, leading technical level, reliable product quality, SSG has become an outstanding supplier in international investment casting area.
Packaging & Delivery
- Packing :According to customer requirements
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:Americas,European Union
- Founded Year:1994
- Address:
- Contact:Lisa LEE
