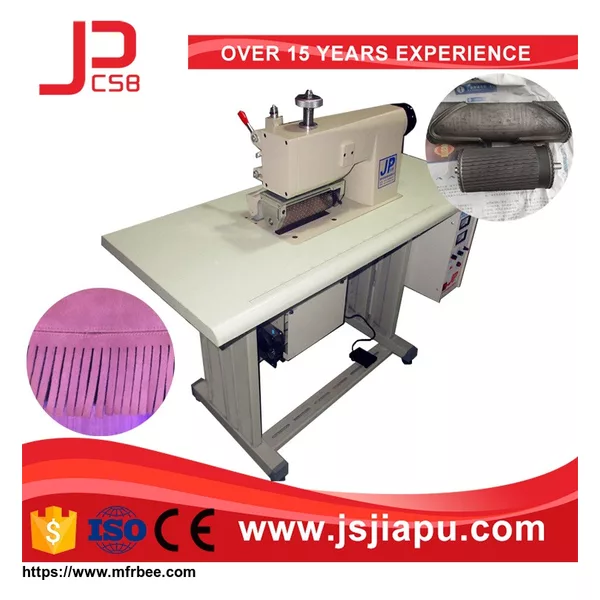

JP-150 Ultrasonic Lace Sewing Machine(CE)
Basic components
1. New type PC intellectual ultrasonic generator;
2. 20KHz ultrasonic transducer unit;
3. Double-motor speed adjustment system;
4. Manual roller lifting system;
5. Super large head system, extra-width pattern roller to process larger diameter
Characteristics
1. Built-in PC chips, multi-circuit ultrasonic protection system to make the machine run safely;
2. Strong ultrasonic power with three adjustable gears (maximum, medium and minimum), meets the welding requirements of different materials and thicknesses;
3. The performance of the machine reaches international level with automatic frequency tracking system and ultrasonic soft-starting technology;
4. Installing roller with larger diameter to manufacture special lace and craft flowers, etc.
Functions
1.Trimming:Straight or curvilinear edge cutting and edge treatment for melting, so smooth, no rough edges;
2.Sealing:Two or more layers of fabric stitched together without thread replacing the sewing needles, good welding strength;
3.Hole making:Cut out the various patterns of holes, and treatment of side melting;
4.Slitting:Single or more cutting of the material at the same time, and treatment of side melting without burr;
5.Forming:Simultaneous cutting, sealing and embossing to make production in one time.
Technical parameter
Source power | 220V |
Input power | 1800-2500W |
Output frequency | 20KHZ |
Working speed | 0-20m/min |
Roller size | Width: 0-190mm; Diameter: Ø50-Ø80mm |
Dimension(L*W*H) | 1200*600*1200mm |
Net weight | 120KG |
Applications
Apply to lace clothing, ribbon, decoration products, handkerchief, tablecloth, curtain, bedspread, pillowcase, quilt cover, non-woven fabric products and so on.
