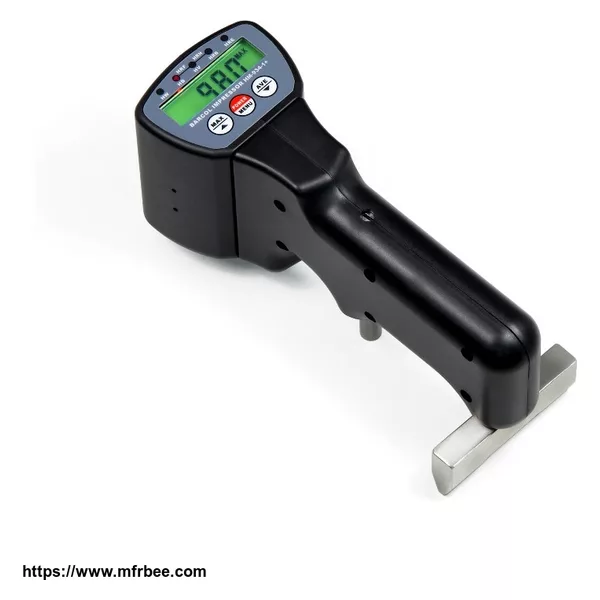

DigitalBarcolPortable Hardness Tester HM-934-1+
Used for measuring the hardness of:
*aluminum, aluminum alloys, soft metals
*fiberglass and other materials.
Features:
* Wide test range, can test from very soft pure aluminum to a particularly hard aluminum alloy. effective test range equivalent to the Brinell Hardness of 25~150HB.
* Can be used for measuring not only Barcol Hardness, but also Brinell Hardness (HB), Vickers Hardness (HV), Webster Hardness (HW), Rockwell Hardness (HRB/HRE/HRF/HRH).
* With the function of calculating the average value, can calculate the average value of the 29 sets of data at most.
* Provide Bluetooth data output choice.
Details:
Range | 0~100Hba,Amount to 25~135HBW |
Resolution | 0.1HBa |
Indication Error | 81~88Hba±1Hba |
42~48Hba±2Hba | |
Repeatability Error | 81~88Hba±1.5Hba |
42~48Hba±2.5Hba | |
Brinell Hardness | √ |
Vickers Hardness | √ |
Wenster Hardness | √ |
Rockwell hardness | √ |
Maximum Hold | √ |
Average Calculation | √ |
Operating Condition | Temperature:0~50ºC Humidity:<80%RH |
Power Supply | 2x1.5V AAA(UM-4)Battery |
Dimensions | 170x63x82mm |
Weight | 390g(Not Including Batteries) |
Standard | Main Unit |
Accessories | 2 Pins |
2 Standard Blocks | |
Pin Length Calibration Block | |
Screw Driver | |
Spanner | |
Carrying Case | |
Operation Manual | |
Optional | Bluetooth Data Adapter with Software |
For more details,please feel free to contact us.Thank you!
