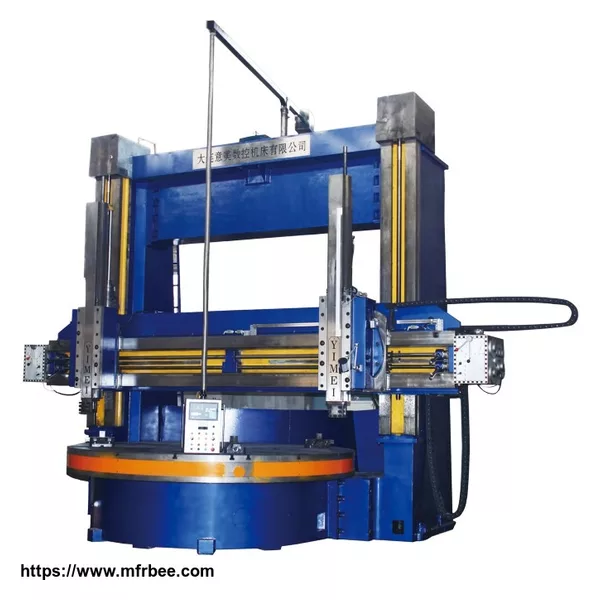

CJ5240 Double-column Vertical Lathes in china

Minimum Order
1
Place Of Origin
China
Packaging
N/A
Delivery
15 Days

CJ5240双柱中国的立式车床

1.该系列车床承载能力高,价格合理,性能优良。

2.大型底座、工作平台、环形轴承和工作平台导板。

3.工作平台采用纯静压式,承重高达32吨。(最多400吨)

4.优秀的铸件(HT300)通过热老化处理。

5.加宽200 mm的横梁具有很强的刚度,不会出现下垂的可能性。

6.横梁导轨面经硬化处理(HRC≥50),垂直刀架滑枕采用球墨铸铁材料,滑动面经粘塑处理,经久耐用,大大延长了修复周期。

7.手动润滑泵定时定量给不同的润滑部位加油。

8.高品质、高可靠性的电器元件,日本欧姆龙PLC控制。

9.独立液压站便于调整、维修和保养。

10.配有光栅数字显示装置。

11.执行JB/T4116-96《立式车床精度检验标准》。

JB/3665-96《立式车床技术条件》执行。

12.完整的加工装配流程和严格的质量控制流程确保产品达到完美一流的完美品质。

13.高精度变速齿轮(6级精度)和高精度磨齿螺旋锥齿轮(6级精度)噪音低,运行平稳。
