1. Description

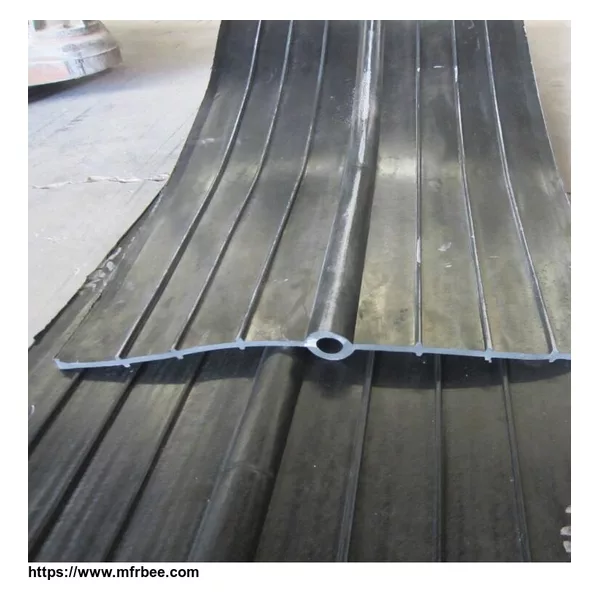

rubber water stop, made of quality EPDM, neoprene rubber or natural rubber, is one of the widest types for concrete structure to prevent liquid leaking in or out. Generally, designed to be cast in the concrete.
2. Classification
Common Rubber Waterstop
Rubber waterstop with steel side
Water-swelling rubber waterstop
3. Parameter
No | Item | Natural Rubber | Synthetic Rubber | |
1 | Hardness Shore A | 60±5 | 60±5 | |
2 | Tensile Strength ≥ | 15 Mpa | 12 Mpa | |
3 | Elongation at break ≥ | 380 % | 380% | |
4 | Compression set | 70℃*24h % ≤ | 35 | 35 |
23℃*168h % ≤ | 20 | 20 | ||
5 | Brittleness temperature ≤ | -45 | - 40 | |
6 |
Hot-air aging
70℃ x 72h |
Hardness Shore A ≤ | +8 | +8 |
Tensile Strength N/mm²≥ | 10 | 10 | ||
Elongation change rate %≤ | 20 | 20 |
Rubber expansion joints are used in the transportation of pressurized fluids. As they eliminate the need for coupling gaskets they are widely used in many industrial sectors. They are highly resistant to fatigue and corrosion and have a significant sound-proofing capacity ...
standard flexible rubber joint 1.Leading MFR of rubber expansion joint in China 1.ISO9001&ISO14001 2.Size:DN50-DN4200 Rubber joint brief introduction: 1,Flexible rubber joint type is also called JGD flexible single rubber ball joints, pipe suspension shock absorber, rubber ...
PTFE lined EPDM rubber expansion joints have advantages of PTFE and Rubber, PTFE can work in strong acid or strong alkali conditions, and rubber (EPDM) has very good flexible performance. Flanges standard: AISI, DIN, JIS, BS etc, or customs design Flanges material: Carbon ...
Rubber expansion joint with steel arms T.C.I has rubber expansion joints of the shelf in sizes 32mm (1-1/4\") to 1200mm (48\"). Australian Flexible Joints stock four different elastomers:- EPDM Rubber Expansion Joints NEOPRENE Rubber Expansion Joints HYPALON Rubber Expansion ...
FOB Price:US $0.5 - 9,999 / PieceNingbo HANLONG Imp. & Exp. Trading Company was established based on the original Ninghai SIMING Rubber Hose Factory. We are one of the manufacturers who is specialized in the line of concrete pump rubber hose with many years experience, and have ...
Rubber bridge expansion joints Because of the excellent sealability and shock-absorbing effect of rubber, rubber bridge expansion joints do well in proofing water and reducing noise. The elasticity of rubber plates and its shear deformation in the telescopic channel helps the ...
Place of Origin: Guangdong, China (Mainland) Brand Name: Hongye silicone Model Number: Addition Molding Silicone HY-E series Color: Translucent Certificate: FDA,, MSDS, SGS, RoHS Shape: Pasty Package: Vacuum Pumping Shelf Life: 12 months application: for food mold making ...
Tube: Abrasion Resistant Conductive Natural And CBR Rubber Reinforcement: High Tensile Steel Cords Cover: Abrasion, Ozone And Weather Resistant Pin-Pricked Special Synthetic Rubber Temperature Range: -40°C/+70°C Contact person:Rick Wang ...
1. The rubber water stops produced by our company are made of natural rubber , EPDM , and various synthetic rubber as the main raw materials, adding various additives and fillers, and take into shapes after mixing , kneading, pressing and vulcanizing. 2. Type: CB and CP type ...
PZ rubber water stop is a new type of waterproof material that shares the same performance with ordinary rubber product and automatically expands by reacting to water. It’s more solid than common rubber water stop in terms of water stoppage and waterproof effect. Features of ...
