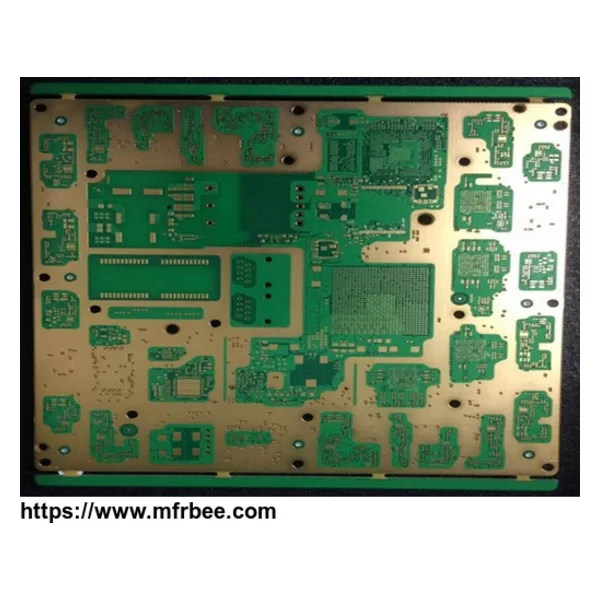

PCB
Product Quick Detail
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 5
Specifications
Hybrid, Plasma, Rogers, Carbon ink, Gold Flash, Peelable mask, Taiyo ink, etc.
Maximum Board Size: 23.6" x 47.2"
Board Thickness: 0.2mm-6.5mm
Maximum Copper Weight: 18 Oz
minimum mechanical drilling of holes: 0.2mmLP
Min. Line Width/Space:
1oz-------------- min 4/4mil
2oz-------------- min 8/8mil
3oz-------------- min 11/11mil
4oz-------------- min 14/14mil
5oz-------------- min 15/15mil
IPC Class: Class II and Class III
Laminates: FR4,CEM3, CEM1, Metal Base (Alu, Cu), Rogers, High TG, Halogen Free.
Connection tab：V-CUT, Bridge, Bridge with stamp holes, Jump Scoring, Punching.
Facilities:
ISO9001:2000 certified ,IPC&UL approved and ROHS.
AOI , C Sun big exposure machines, 8 flying probe testers, 10 drilling machines,
waste gas processing equipment, wast liquid processing equipment and etc, automatic routing machines.
Service:
1. 30-Minute-Lightning-Response on PCB inquiry.
2. Only 1 time tooling charge when first order, reorders no charge any more.
3. 98% on time Delivery reputation for express orders; 89% for normal orders; Around 0.8% complaint rate.
4. Quality problem caused by our factory, will expedited re-manufacture for you for free.
Delivery time:
Quickest lead time for prototype:
DS： 12 Hours 4L： 24 Hours
6L： 24 Hours 8L： 48 Hours
10L： 48 Hours
Delivery time to the United States will be only one day, to Europe will be only two days.
OE quality:
Production process via 6 times quality checks.
The finished board will be inspected with two-rounds to make no flatness boards.
Partners:
Sheng Yi SCI. Tech Co., Ltd (for FR4 material), TaiYo Ink Co., Ltd (for S/M). Kuang Shun, KingBoard Chemical Holdings Ltd., Onstatic atechnology Co., Ltd.
Team:
Our technical director comes from CHINA FAST PRINT.
Passionate, hardworking and youthful sales group. Both daily and night shift we provide you almost 16h all around service.
Each board is the crystallization of our workers' diligence and wisdom.
- Country: China (Mainland)
- Business Type: 生产厂家
- Market:欧洲,美洲,亚洲,欧洲联盟
- Founded Year:2004
- Address:
- Contact:Jeff Fu
