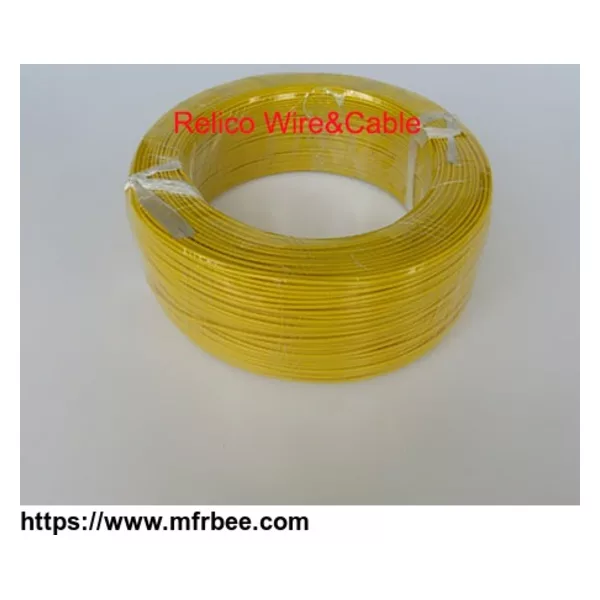

UL1015 PVC Insulated Single Conductor Electrical Wire (600V)

Place Of Origin
Shanghai
Minimum Order
3000
Packaging
605Meters/Roll
Delivery
7 Days
  • Product Series:UL1015
  • Rated temperature:- 30° C to + 105°C
  • Rated voltage:600V
  • Test voltage:1500V
  • Insulation material:PVC
  • Conductor material:Tinned Copper
  • Product Standards:UL 758, UL1581 & CSA C22.2

UL1015 PVC Insulated Single Conductor Electrical Wire(600V)

Conductor


Insulation




Package


AWG


Conductor Construction


Conductor Diameter


Thickness


Wire Diameter


Electric Resistance(Ω/KM)

M/Roll
30 7*0.10 0.30 0.76 1.82 376.96 610
28 7*0.12 0.37 0.76 1.89 237.25 610
26 7*0.16 0.49 0.76 2.01 148.94 610
24 11*0.16 0.61 0.76 2.13 93.25 610
22 17*0.16 0.76 0.76 2.28 55.00 610
20 21*0.18 0.95 0.76 2.47 34.60 610
18 41*0.16 1.18 0.76 2.73 21.86 610
16 26*0.254 1.47 0.76 2.99 13.70 305
14 41*0.254 1.85 0.76 3.37 8.62 305
12 65*0.254 2.33 0.76 3.85 5.43 305
10 105*0.254 3.47 0.76 4.99 3.41 305
8 133*0.284 4.37 1.14 6.65 2.33 100
6 266*0.254 5.52 1.52 8.56 1.46 100
28 1*0.32 0.32 0.76 1.84 237.25 610
26 1*0.40 0.40 0.76 1.92 148.94 610
24 1*0.50 0.50 0.76 2.02 93.25 610
22 1*0.60 0.60 0.76 2.12 55.00 610
20 1*0.80 0.80. 0.76 2.32 24.60 610
18 1*1.00 1.02 0.76 2.52 21.80 610
16 1*1.28 1.28 0.76 2.80 13.60 305
