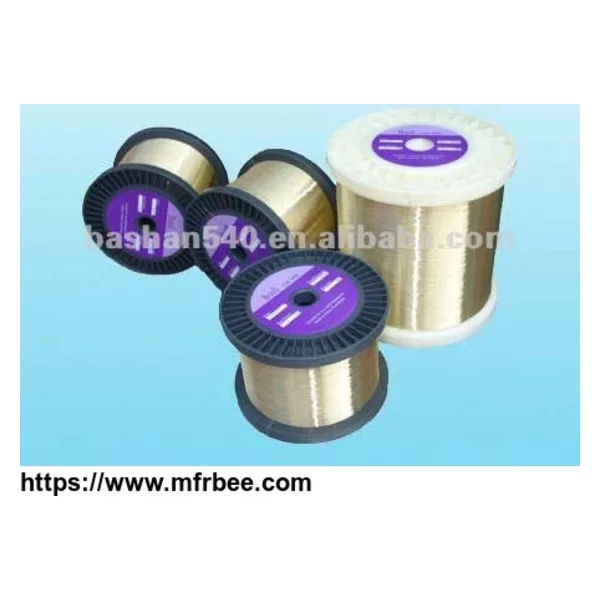

brass edm wire Φ0.3mm~0.1mm
Product Quick Detail
- Place Of Origin
- henan,china
- Application
- Used on wire-cut machine of Agie, Charmilles, Sodick, Mitsubishi, Makino etc.
- Conductivity
- Above 20% IACS
- Minimum Order
- 200
- Material
- CnZn,H80
- Condition
- Hard, Semi-hard, Soft
- Packaging
- PE film sealed, moisture proof, quake proof, corrosion resistance
- Delivery
- 7 Days
Specifications
Brass EDM Wire Features
Various of wire core material can match demands
of different wire-cute machine.
Heat treatment technology ensures tensile strength
stability, and prevents damage of wire.
Superior verticality suitable for automatic threading.
High drawing precision, fine ovality, low tolerance.
Spool Types
P3, P5, P10, P20, DIN125, DIN160, DIN200.
PE film sealed
Moisture, quake proof
Corrosion resistance
Size
| Condition | Specification | Diameter | Tolerance | Tensile Strength | Spool / Weight |
| Hard | BSH1003 | 0.10mm | ±0.001mm | 980 | DIN125(3kg, 3.5kg) |
| BSH1503 | 0.15mm | DIN125(3kg, 3.5kg) P5(5kg) DIN160(7kg, 8kg) DIN200(15kg, 16kg) | |||
| BSH20** | 0.20mm | ||||
| BSH25** | 0.25mm | ||||
| BSH30** | 0.30mm | ||||
| Semi-hard | BSH25** | 0.25mm | 480~520 | ||
| BSH30** | 0.30mm | ||||
| Soft | BSH25** | 0.25mm | 380~420 | ||
| BSH30** | 0.30mm |
Our company
In more than 62 years experience of metal wire cold drawing, metal wire mesh weaving and deep
processing products, Bashan with the largest produce scale, strong technical support capabilities,
products specifications are in complete, our company is the main drafting company who make the
GB/T5330; GB/T6003.1; GJB5107; HB1862 and other 19 wire mesh technology standards in China.
Remark: GB is the China standard. Bashan company acquired 24 metals wire & mesh patent such
as (GB/T4240, GB/T5330, GB/T6003, GJB107, HB1862, national standard; GJB national military
defense standard; HB, aviation standard.). We never stop to connect with the international
standard, we sold the products to America, Russia, Korea, England, etc.
Contact
- Country: China (Mainland)
- Business Type: trading company
- Market:europe
- Founded Year:1955
- Address:No.5 Daoqing Rd, Xinxiang, Henan, 453000, China
- Contact:Jane Yuan
