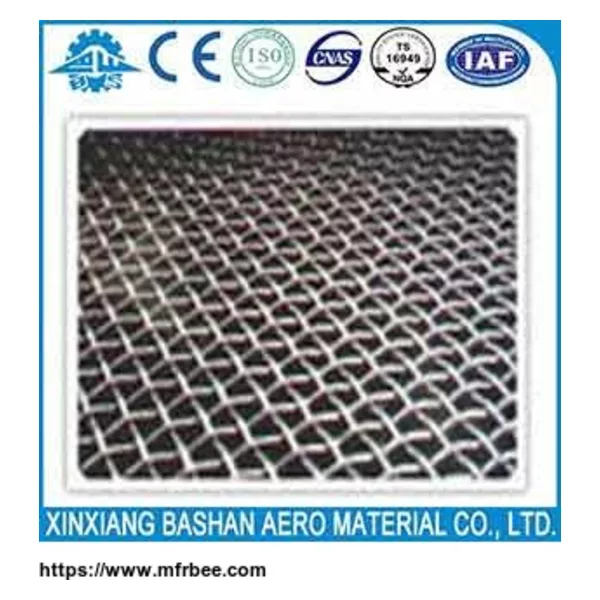

High Quality Screening Wire Mesh
Product Quick Detail
- Application
- chemistry or machinery or medicine etc.
- Material
- stainless steel or nickel or brass
- Minimum Order
- 10
- Standard
- JB/T5979-92,Q/9D193-1998,ISO4783/1--1990
- Color
- red or yelllow or stainless steel
- Place Of Origin
- henan,china
- Used
- Used for gas, liquid filtration and other media separation
- Packaging
- width:0.9m / 1.0m / 1.2m1.8m / 2.0m length:25m / 30m / 50m
- Delivery
- 7 Days
Specifications
Stainless Steel Wire Mesh
| production standard | GB/T5330,Q/9Dn1-2015,HB1862-1993,ISO9044-1999 |
| the way of weaving | square hole or minigroove |
| texture | 304,304L,316,316L,310,310s,brass,nickel etc. |
| aperture size | 6.00-0.020mm |
| application | chemistry:acid base salution filtration,chemical experiment,corrosive gas filtration chemical particle filtration etc petroleum:oil refining,oil mud filtration,impurity separation etc. medicine:chinese traditional soup is filtered etc. electron:cricuit board structure,electron componet etc. printing:ink filter etc machinery:vibrating screen etc. |
copper wire mesh
| application | pharmacy,metal powder screening etc. |
| the way of weaving | square hole |
| texture | red copper,brass(H65,H80) nickel etc. |
| aperture size | 6.00-0.020mm |
Nickel Wire Mesh
| character | resistant to corrosion,conduction etc |
| application | mainly used for battery electrode,collector network,shielding radiation,special liquid gas fitration,etc. |
| the way of weaving | plain weave,twil weave,seat type weaving |
| texture | N4,N6 nickel |
| standard | 1inch--330inch |
technical parameters of wire woven wire mesh
| mesh no | aperture size | wire dia | screening | mesh/inch | stainless steel weight per unit area | tin bronze weight per unit area | brass |
| 4# | 4.75 4.75 | 1.60 1.00 | 56 68 | 4.00 4.42 | 5.09 2.19 | 5.74 2.47 | 5.64 2.43 |
| | 4.50 | 1.00 | 67 | 4.62 | 2.29 | 2.58 | 2.54 |
| 5# | 4.00 4.00 | 1.25 1.00 | 58 64 | 4.84 5.08 | 3.76 2.52 | 4.24 2.84 | 4.17 2.79 |
| | 3.55 3.55 | 0.80 0.63 | 67 72 | 5.84 6.08 | 1.86 1.20 | 2.10 1.35 | 2.06 1.33 |
| 6# | 3.35 3.35 | 0.80 0.63 | 65 71 | 6.12 6.38 | 1.95 1.20 | 2.20 1.35 | 2.16 1.33 |
| | 3.15 3.15 | 0.80 0.56 | 64 72 | 6.43 6.85 | 2.04 1.07 | 2.30 1.14 | 2.26 1.12 |
| 7# | 2.80 2.80 | 0.71 0.56 | 51 69 | 7.24 7.56 | 1.81 1.18 | 2.04 1.33 | 2.00 1.31 |
| | 2.50 2.50 2.50 | 0.62 0.56 0.50 | 64 67 69 | 8.12 8.30 8.47 | 1.71 1.29 1.05 | 1.71 1.46 1.18 | 1.71 1.43 1.16 |
Our company
Xinxiang Bashan Aero Material Co., Ltd., affiliated to China Aviation Industry Corporation (AVIC),
is the only professional military manufacturer of Stainless steel wire, Metal wire mesh, Filter
element, Special filtration component and Thread insert.
In more than 60 years experience of metal wire cold drawing, metal wire mesh weaving and deep
processing products, Bashan company acquired 24 metal wire & mesh patents and took chief part
of 19 standards, such as GB/T4240, GB/T5330, GB/T6003, GJB107, HB1862, etc. (GB/T, national
standard; GJB national military defense standard; HB, aviation standard.
Contact
- Country: China (Mainland)
- Business Type: trading company
- Market:europe
- Founded Year:1955
- Address:No.5 Daoqing Rd, Xinxiang, Henan, 453000, China
- Contact:Jane Yuan
