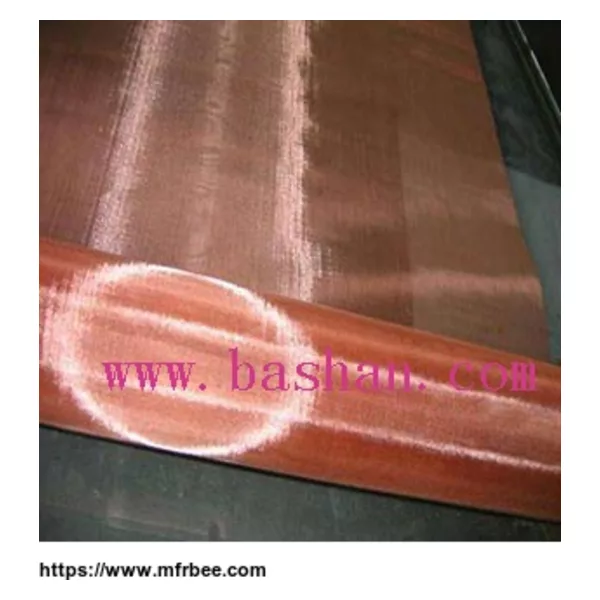

Copper Square woven Wire Mesh
Product Quick Detail
- FOB Price
- USD $4.00 / Piece
- Place Of Origin
- henan,china
- Minimum Order
- 10
- Packaging
- standard export package or according to the customer' s request
- Delivery
- 7 Days
Specifications
| Copper Square woven Wire Mesh | |
| Cloth material | Brass Wire |
| Wire dia | 0.711mm,0.61mm,etc |
| tolerance | 0.012mm,0.013mm, |
| Mesh | 6-200mesh |
| Frame material | Brass, Stainless steel, galvanized , etc |
| Certifications | GB/T6003, ISO 3310, BS410, ASTM E11, JIS Z 8801 |
| mesh | Wire Dia. (MM) | Opening(mm) | Opening rate % | Screen surface material | Tolerance |
| | SWG | mm | inch | | 0.08mm |
| 6mesh | 22 | 0.711 | 0.028 | 3.522 | 0.07mm |
| 8mesh | 23 | 0.610 | 0.024 | 2.565 | 0.06mm |
| 10mesh | 25 | 0.508 | 0.020 | 2.032 | 0.05mm |
| 12mesh | 26 | 0.457 | 0.018 | 1.660 | 0.04mm |
| 14mesh | 27 | 0.417 | 0.016 | 1.397 | 0.03mm |
| 16mesh | 29 | 0.345 | 0.014 | 1.243 | 0.029mm |
| 18mesh | 30 | 0.315 | 0.012 | 1.096 | 0.025mm |
| 20mesh | 30 | 0.315 | 0.0124 | 0.955 | 0.021mm |
| 22mesh | 30 | 0.315 | 0.0124 | 0.840 | 0.018mm |
| 24mesh | 30 | 0.315 | 0.0124 | 0.743 | 0.016mm |
| 26mesh | 31 | 0.295 | 0.0116 | 0.682 | 0.013mm |
| 28mesh | 31 | 0.295 | 0.0116 | 0.612 | 0.012mm |
| 30mesh | 32 | 0.247 | 0.011 | 0.573 | 9.9μm |
| 32mesh | 33 | 0.254 | 0.010 | 0.540 | 8.7μm |
| 34mesh | 34 | 0.234 | 0.0092 | 0.513 | 7.6μm |
| 36mesh | 34 | 0.234 | 0.0092 | 0.472 | 6.6μm |
| 38mesh | 35 | 0.213 | 0.0084 | 0.455 | 5.8μm |
| 40mesh | 36 | 0.193 | 0.0076 | 0.442 | 5.2μm |
| 42mesh | 36 | 0.193 | 0.0076 | 0.412 | 4.6μm |
| 44mesh | 37 | 0.173 | 0.0068 | 0.404 | 4.1μm |
| 46mesh | 37 | 0.173 | 0.0068 | 0.379 | 3.7μm |
| 48mesh | 37 | 0.173 | 0.0068 | 0.356 | 3.4μm |
| 50mesh | 37 | 0.173 | 0.0068 | 0.335 | 3μm |
| 60X50mesh | 36 | 0.193 | 0.0076 | - | 2.8μm |
| 60X50mesh | 37 | 0.173 | 0.0068 | - | 2μm |
| 60mesh | 37 | 0.173 | 0.0068 | 0.250 | 2μm |
| 70mesh | 39 | 0.132 | 0.0052 | 0.231 | 1μm |
Applications of Copper Square woven Wire Mesh:
Hot sale Copper Wire Woven Meshes are widely used all types of laboratory sampling and particle size analysis:
such as :
Agriculture, Biology, Chemistry & Plastics, Construction materials, Engineering & Electronics, Environment, Food, Geology & Metallurgy, Glass & Ceramics, Medicine & Pharmaceuticals.
1)Passed ISO9001:2008 quality certificate
2)Passed ISO/TS16949:2009 certificate
3)Passed GJB9001A-2001 military quality certificate.
4)Drafted GJB119.1A-119.4A-2001, GJB107-5110-2002, GB/T5330-2003,HB1862-93
Copper Square woven Wire Mesh
Packing Details
* Inner: Plastic bag
Out: Carton or wooden case or according to the weight
* Pallet / Wooden Crate.
* Customized packing.
Processing & Delivery Time
* Common products in 2-4 days.
* Special products according to Contract.
* Small package is shipped by Air, DHL, FedEx etc.
4-10days.
* Big size package is shipped by sea, 10-30days.
MOQ
* 100 Square Meters .
* If no Stock, please contact the supplier to confirm it.
* Payment terms: L/C,T/T,Western Union
* Trade term: EXW/ FOB/ CIF.
The main markets of Copper Square woven Wire Mesh.
| Delivery | 1,Express by air 2,Ship by sea 3,customer's requirement is welcome |
| Payment | T/T,L/C,Western Union |
| After-sale service | Nice after-sale service will be offered and it is a good tradition in our factoy |
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
- Country: China (Mainland)
- Business Type: trading company
- Market:europe
- Founded Year:1955
- Address:No.5 Daoqing Rd, Xinxiang, Henan, 453000, China
- Contact:Jane Yuan
You may also like
Inquires
-
bashan@CN,2017-07-13 13:42:33
Materials red copper
Weave plain weave, dutch weave
Wire diameter 0.05-1.8mm
Cloth wide: 0.914m,1.0m,1.2m,1.5m etc
Cloth length: commonly is 30m
Mesh: 2-200mesh
Feature: Non-magnetic, wear resistance and good sound insulation
Application:
It can be used as the shielding screen in the cable circuits, laboratories, computer rooms.
The red copper woven wire cloth can be used as the RFI and EMI shielding net in the electronic devices, power sector, aerospace, information industry, military installations.
The red copper woven wire cloth can be used in the building walls to insulation noise.
The red copper woven wire cloth can be used in the electronic display to filtering the electron beam.
