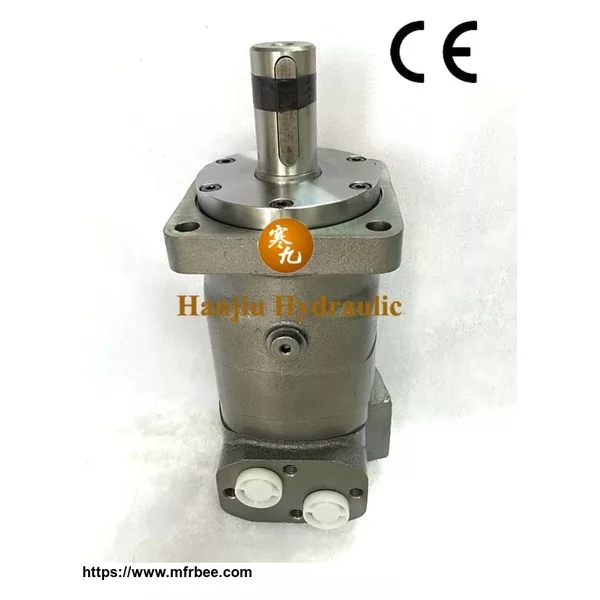

Drilling machine parts BMT Hydraulic motors

FOB Price
USD $185.00 / Piece
Place Of Origin
China
Minimum Order
1
Packaging
wooden case or others
Delivery
15 Days

Hydraulic orbit motor BMT

BMT series motor adapt the advanced Gerotor gear set design with disc distribution flow and high pressure. The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.
Characteristic Features:
*Advanced manufacturing devices for the Gerotor gear set, which use low pressure of start-up, provide smooth and reliable
operation and high efficiency.
*The output shaft adapts in tapered roller bearings that permit high axial and radial forces. Can offer capacities of high pressure and high torque in the wide of applications.
*Advanced design in disc distribution flow, which can automatically compensate in operating with high volume efficiency and long life, provide smooth and reliable operation.

Order Code:
Code Remarks
BMT
BMTS
Displacement
160
200
250
315
400
500
630
800
Flange
4 4-Ø14 Square-flangeØ160,pilotØ125×9 BMT
K6 4-Ø14.5Square-flangeØ162,pilotØ127×9
W 4-Ø18 Wheel-flangeØ200,pilotØ160×7
D 4-Ø14 Circle-flange Ø160,pilot Ø125×8 BMTS
E 4-Ø14.5 Square-flange Ø162, pilot Ø127×10
Output Shaft
M Shaft Ø40,parallel key 12×8×70 BMT
G Shaft Ø38.1,parallel key 9.52×9.52×57.15
F Shaft Ø38.1,splined tooth 17-DP12/24
FD Shaft Ø38.1,splined tooth 17-DP12/24
T Cone-shaft 1:10 Ø45,parallel key B12×8×28
T1 Cone-shaft 1:8 Ø45,parallel key 11.13×11.13×31.75
SL shaft Ø34.85,Splined key,Splined key 6-34.85×28.14×8.64
G1 shaftØ31.75,parallel key 7.96×7.96×40
F1 Shaft Ø31.75,splined tooth 14-DP12/24
Omit Short shaft 16-DP12/24 BMTS
Port and Drain Port
D G3/4 Manifold Mount,4-M10 , G1/4
M M27×2 Manifold Mount,4-M10, M14×1.5
S 1-1/16-12UN O-ring, 9/16-18UNF
S1 1-1/16-12UN O-ring, 7/16-20UNF
G G3/4,G1/4
M3 M27×2,M14×1.5
Rotation Direction
Omit Standard
R Opposite
Paint
00 No paint
Omit Blue
B Black
S Silver grey
Unusually Function
Omit Standard
LL Low Leakage
F Free Running
LS Low Speed

Main Specifications:
Type BMT 160 BMT 200 BMT 230 BMT 250 BMT 315 BMT 400 BMT 500 BMT 630 BMT 800
Geometric displacement
(cm3 /rev.)
161.1 201.4 232.5 251.8 326.3 410.9 523.6 629.1 801.8
Max. speed (rpm) cont. 625 625 536 500 380 305 240 196 154
int. 780 750 643 600 460 365 285 233 185
Max. torque (N·m) cont. 470 590 670 730 950 1080 1220 1318 1464
int. 560 710 821 880 1140 1260 1370 1498 1520
peak 669 838 958 1036 1346.3 1450.3 1643.8 1618.8 1665
Max. output (kW) cont. 27.7 34.9 34.7 34.5 34.9 31.2 28.8 25.3 22.2
int. 32 40 40 40 40 35 35 27.5 26.8
Max. pressure drop
(MPa)
cont. 20 20 20 20 20 18 16 14 12.5
int. 24 24 24 24 24 21 18 16 13
peak 28 28 28 28 28 24 21 19 16
Max. flow (L/min) cont. 100 125 125 125 125 125 125 125 125
int. 125 150 150 150 150 150 150 150 150
Max. inlet pressure
(MPa)
cont. 21 21 21 21 21 21 21 21 21
int. 25 25 25 25 25 25 25 25 25
peak 30 30 30 30 30 30 30 30 30
Weight (kg) 19.5 20 20.4 20.5 21 22 23 24 25

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

Substitute Reference substance


MOTOR CROSS REFERENCE TABLE
HANJIU
HYDRAULIC
M+S
HYDRAULIC
EATON
CHAR LYNN
DANFOSS ROSS
TRW
WHITE
CROSS
PARKER SAM
BREVINI
BOSCH
RECROTH
BMM MM MLHK J SERIES OMM BGM MGX
BMP/BM1 MP HP H SERIES OMP DH MF MG WP RS TC TE TB BG MGP GXP
BMR/BM2 MR HR MLHRW,RW S,T SERIES W SERIES OMR DS OMEW MB WR RE TF BR MGR GMR
BMH/BM4 MH MLHH HW HWF OMH ME RE TG
BMS/BM5 MS MSY MLHS 2000 SERIES OMS ME RE TG HPR MGS GMS
BMT/BM6 MT MLHT MTM 6000 SERIES OMT TMT MJ HT MGT,GMT
BMV MV MLHV 10000 SERIES OMV MGV GMV

Hydraulic orbit motor applications:
Brush cutters
Mower
Haveresting equipment
Forestry equipment
Turf equipment

  • Country: China (Mainland)
  • Business Type: Manufacturer,Trading Company
  • Market:European Union,Africa,Middle East,Oceania
  • Founded Year:2010
  • Address:15A-07,Zhongyuan building, Youyi street,Shijiazhuang city,China
  • Contact:Jamin Du
