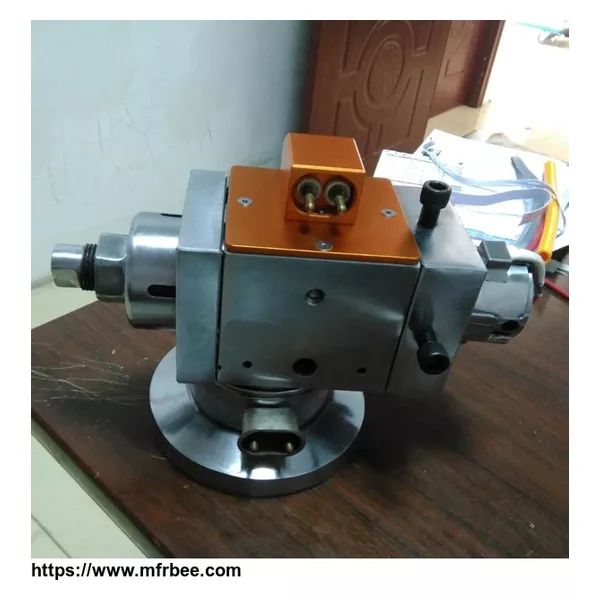

Picture for your reference
Technical specification
Min. diameter of conductor: Ø0.1 mm
Max. diameter of conductor: Ø7 mm
Max.diameter of wire: Ø10 mm
Suitable extrusion material: PVC / PE / PA / PUR / LSZH…
Technical parameters
MF: fixed centering
SL: single layer
SLS: single layer + skin or Stripe
Distribution mono-flow:
Conical distribution cartridge
Easy to clean – no holes or slots – no dead spots
Constant and smooth part flow
No stresses and shear strains in the melted composition
