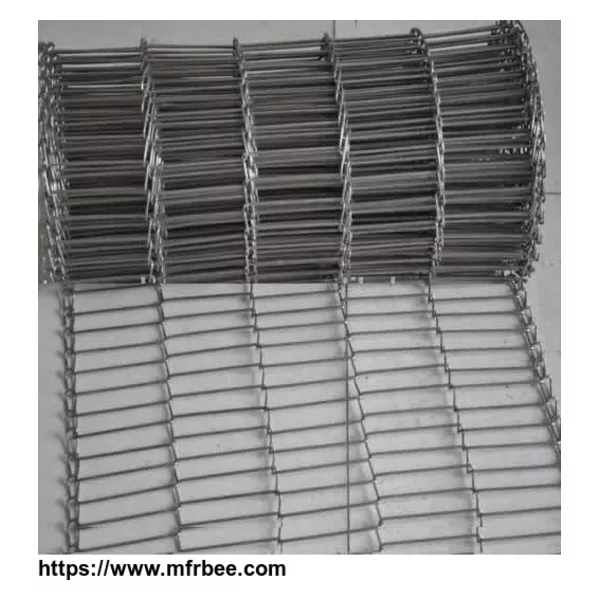

Looped Wire Conveyor Belt

Minimum Order
1
Packaging
N/A
Delivery
15 Days
Stainless steel wire looped belt makes a sanitary conveying solution for food processing industries. Stainless steel itself withstands very high or low product temperatures. The simple interwoven wire loop structure allows maximum airflow around the product, and can be easily rinsed through and sanitized.

Material:quality spring steel AISI 1060; stainless steel wire 302 or custom others.
Open area:66% to 76% High open structure
Wire dia: 0.038" to 0.21" as your request.
Pitch:1/7" to 1/4" or custom others.
Belt width:5" to 13' or custom width as your request.
Application:Mainly used as transporting light and medium weight products in food processing industries

We Offer:
Single Loop Edge Double Loop Edge Conveyor Belt.
Looped Edges Stainless Steel Mesh Conveyor Belt.
Food Industry Wire Loop Belt Conveyor For Chocolate and Food Processing.
Belting Edge Treatment: Clinched or button welded.

Features and Benefits: Sanitary, easy to clean, good functional carrying while draining.
Wire Materials Choice: Stainless steel.
Uses: Light parts.

Features:
High open structure
Positive drive without slipping
Stable conveying
A wide range of sizes
Lower belt mass.
  • Country: China (Mainland)
  • Business Type: sell metal belt,Manufacturer
  • Market:Asia
  • Founded Year:1998
  • Address:31 Yinwang Road, Wire Mesh Development Zone, Anping, Hebei, China
  • Contact:de zhong
