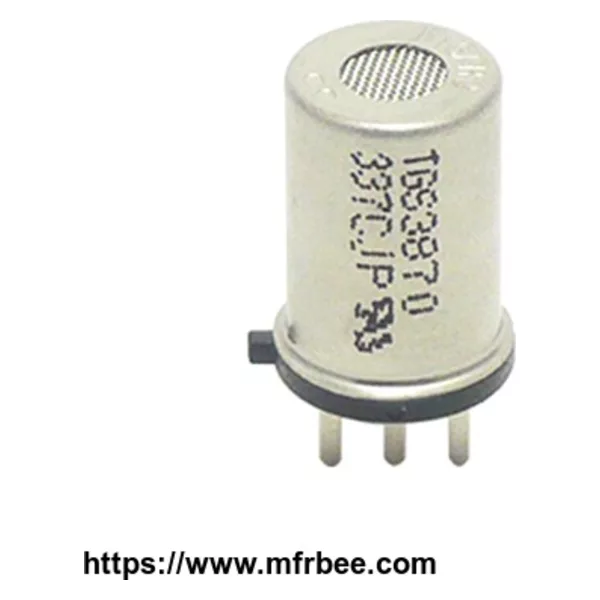

TGS3870-B00 Methane and Carbon Monoxide Gas Sensor
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
TGS3870-B00 Methane and Carbon Monoxide Gas Sensor Features:
* Miniature size and low power consumption
* High sensitivity and selectivity to both methane and carbon monoxide (CO)
* Low sensitivity to alcohol vapor
* Long life and low cost
TGS3870-B00 Methane and Carbon Monoxide Gas Sensor Applications:
* Combination methane and carbon monoxide detectors
TGS3870-B00 is a micro-bead type semiconductor gas sensor for the detection of both methane and carbon monoxide. Using a micro-bead gas sensing structure, both methane and carbon monoxide can be detected with a single sensor element by periodic application of two different heater voltages (high and low). Miniaturization of the gas sensing bead results in a heater power consumption of only 38mW (average).
TGS3870-B00 has low sensitivity to alcohol vapors (a typical interference gas in the residential environment) and has high durability, making the sensor ideal for consumer market gas alarms.
TGS3870-B00 Methane and Carbon Monoxide Gas Sensor Specifications:
* Miniature size and low power consumption
* High sensitivity and selectivity to both methane and carbon monoxide (CO)
* Low sensitivity to alcohol vapor
* Long life and low cost
TGS3870-B00 Methane and Carbon Monoxide Gas Sensor Applications:
* Combination methane and carbon monoxide detectors
TGS3870-B00 is a micro-bead type semiconductor gas sensor for the detection of both methane and carbon monoxide. Using a micro-bead gas sensing structure, both methane and carbon monoxide can be detected with a single sensor element by periodic application of two different heater voltages (high and low). Miniaturization of the gas sensing bead results in a heater power consumption of only 38mW (average).
TGS3870-B00 has low sensitivity to alcohol vapors (a typical interference gas in the residential environment) and has high durability, making the sensor ideal for consumer market gas alarms.
TGS3870-B00 Methane and Carbon Monoxide Gas Sensor Specifications:
|
Model number |
TGS3870-B00 |
|
Sensing principle |
MOS type |
|
Standard package |
Plastic base and metal can |
|
Target gases |
Methane and Carbon Monoxide |
|
Typical detection range |
Methane 500 ~ 12,500ppm
Carbon monoxide 50~1,000ppm
|
