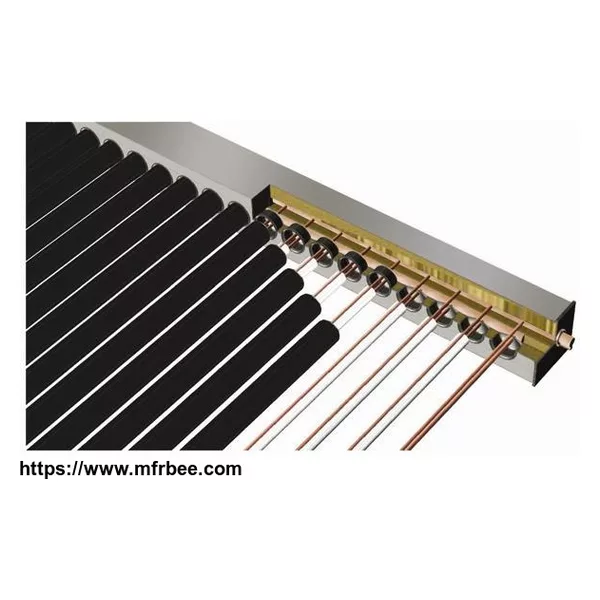

U Pipe Solar Collector (SPU)
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Model Name SPU18
Manifold casing material Anodized aluminum (2.5-3mm)
Frame material Anodized profiled aluminum bar(2.5-3mm)
Header pipe material Copper
U pipe material Copper
U pipe diameter 8mm
No. Of pipes 18
Aperture area 2.3m2
Insulation Rock wool
Rubber seals and rings UV stabilized high temperature silicon rubber
Test pressure 9 bar
Collector mounting Flat roof/inclined roof
Mounting angle 30 degree-50 degree
Inlet Outlet 3/4"
Gross weight 70KG
Terms:
1. Validity: Till 31, Jan, 2011.
2. Payment terms: 30% in advance and 70% against copy of B/L or L/C, For sample T/T 100% in advance
3. Delivery terms: 15 working days after receiving deposit or original L/C.
4. Warranty: 7 years, If any leakage, after confirmation, we will replace it for free.
5. Minimum quantity: 5 sets
6. Package: Sunpower standard export package with Sunpower Logo or the package you want on the basis of OEM.
About Us:
Jiangsu Sunpower Solar Technology Co., Ltd
1. Leading exporter: More than 500000 sets of solar water heater products per year to 82 countries.
2. OEM professional: Systematic OEM service, from package design to tech support.
3. Various certificates: ISO, EN12975, EU CE, Solar Keymark, Kang-Ju, KOLAS, SABS, SRCC
4. Strong warranty: In order to keep long and good business relationships, our company have strict quality control and aftersale service.
